Remove/Install Windshield Washer Nozzle - AR82.35-S-6970E
Model 447, 448
Shown Except Code F48 (Heater for windshield washer system)
Shown With Code F48 (Heater for windshield washer system)
| Remove/install | |||

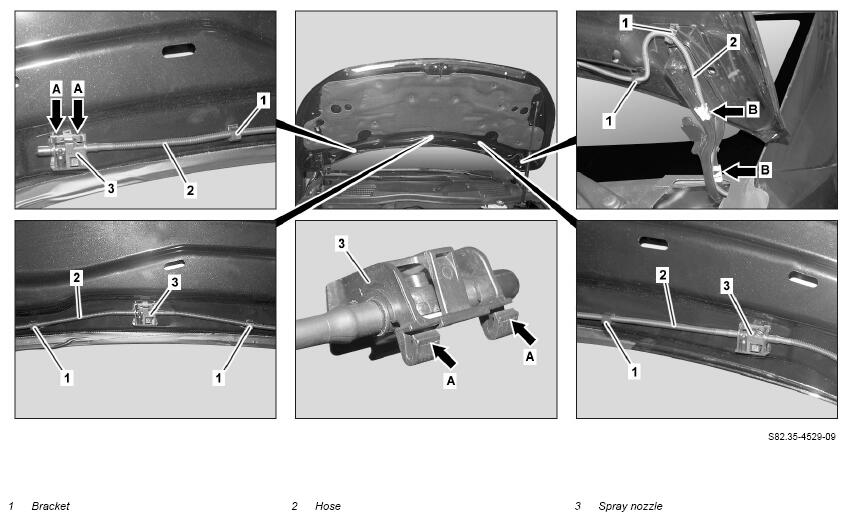

| 1 | Release bracket (1) and remove hose (2) | ||
| 2 | Slightly spread bracket (arrows B) using suitable tool and expose hose (2) at left hinge of engine hood | ||
| 3 | Release locks (arrows A), swivel out spray nozzles (3) towards bottom and place to one side together with hose (2) | ||

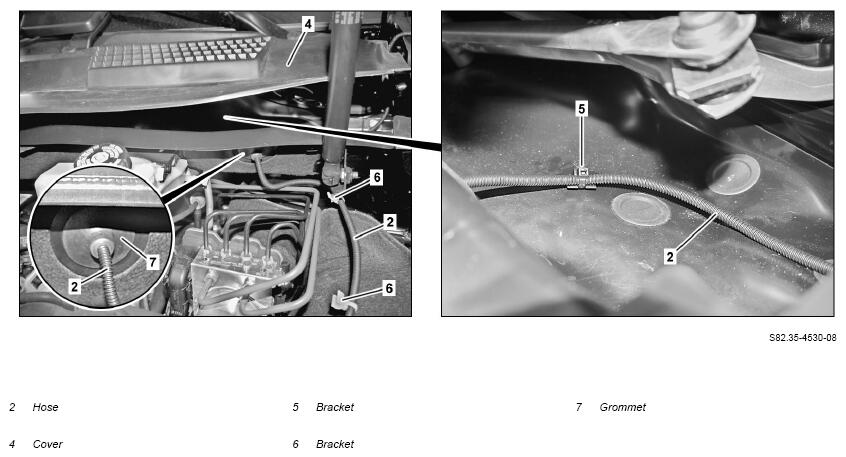

| 4 | Detach paneling (4) on left side until bracket (5) is accessible | AR88.00-S-2792E | |
| 5 | Remove cable tie at bracket (5) | ||
| 6 | Detach bracket (6) | ||
| 7 | Remove grommet (7) towards air/water duct | ||

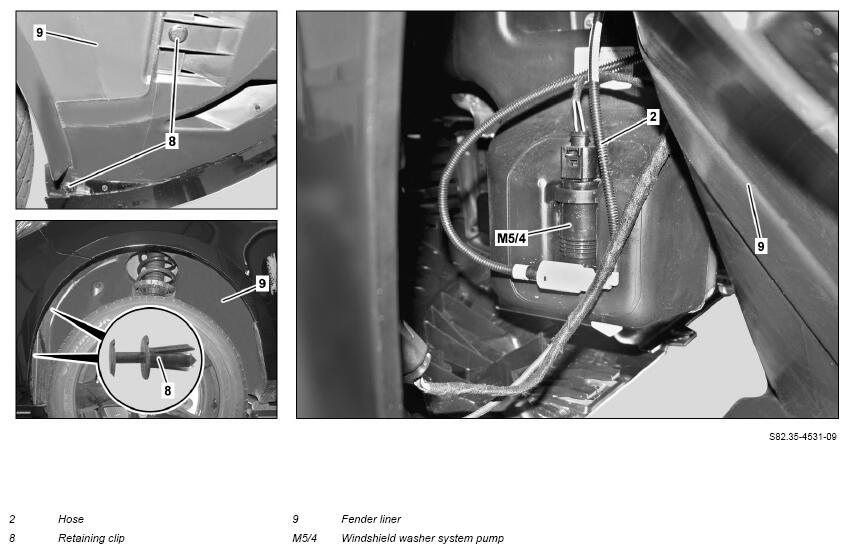

| 8 | Remove retaining clips (8) from left fender liner (9) | For damage ↓ Replace corresponding retaining clip (8) |
|
| 9 | Push left fender liner (9) to one side until windshield washer system pump (M5/4) is accessible | ||
| 10 | Disconnect electrical connector (10) | Model 447, 448 with code F48 (Heated windshield washer system) | |
| 11.1 | Disconnect hose (2) at windshield washer system pump (M5/4) and seal connection at windshield washer system pump (M5/4) with suitable stop plugs | Model 447 except code F48 (Heated windshield washer system) | |
| Fig 1 | |||

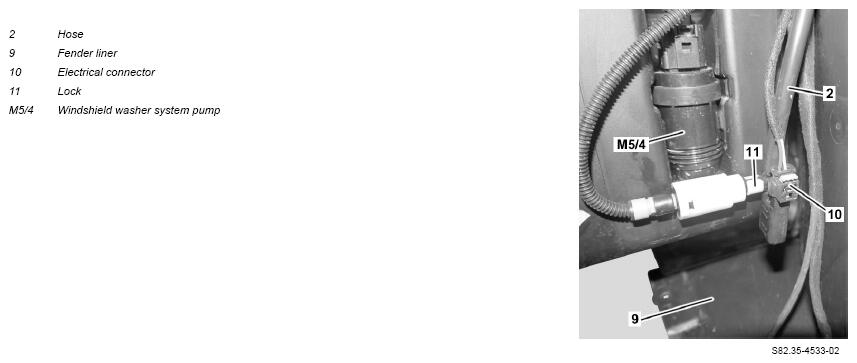

| 11.2 | Release lock (11), disconnect hose (2) at windshield washer system pump (M5/4) and seal connection at windshield washer system pump (M5/4) with suitable stop plugs | Model 447, 448 with code F48 (Heated windshield washer system) |
Fig 1 |
| 12 | Guide hose (2) through opening of grommet (7) at air/water duct and remove from engine compartment with spray nozzles (3) | ||
| 13 | Install in the reverse order | ||
| Check | |||
| 14 | Check windshield washer system for proper function and leakage | ||
| AP82.30-S-8252E |
