Remove/Install Trim On Center Piece In Front Of Windshield - AR88.00-S-2792E

Model 447, 448

Courtesy of MERCEDES-BENZ USA

Shown on Model 447.8

Shown with engine 622.8

Courtesy of MERCEDES-BENZ USA

Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Model 447 with engine 780	AH00.00-Z-0300-01A
	Remove/install
1	Remove left and right wiper arm.		AR82.30-S-6951E

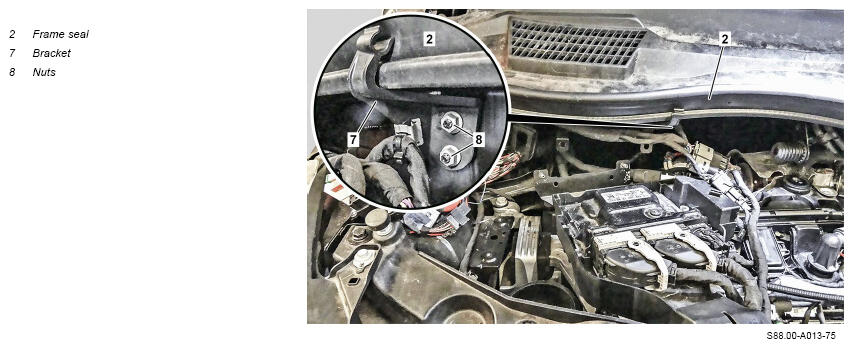

2	Remove holder (7) of hood support.	Model 447.6/7, 448.7 For this purpose, remove nuts (8).

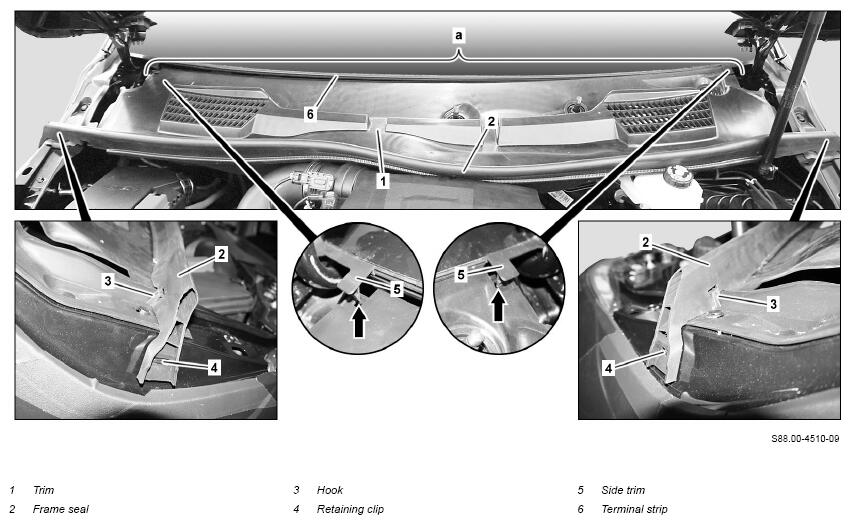

3	Unclip and remove the sealing frame (2) on the hooks (3) and retaining clips (4).	Replace damaged retaining clips (4). Ensure sealing frame (2) is correctly seated. Clip remover	Fig 1
4	Unclip the left and right side trim (5).	Ensure that catch hook (arrows) is seated correctly.
5	Remove trim (1).	Ensure that trim (1) is seated correctly in terminal strip (6).
	Clean
6	Clean terminal strip (6) in area (a).
7	Install in the reverse order.

Fig 1: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
