Remove/Install Spray-Nozzle For Rear Window - AR82.35-S-7338E
Model 447, 448 With Code W64 (Separately opening rear window)
Model 447, 448 With Code W65 (Tailgate)
Model 447, 448 With Code W68 (EASY-PACK-tailgate)
Vehicle With Code W64 (Separately opening rear window)
Model 447 With Code W65 (Liftgate), model 448 With Code W68 (Electrically actuated liftgate)
| Remove/install | |||
| 1.1 | Detach outer cover (4) on liftgate | Model 447, 448 with code W64 (Separately opening rear window) |
AR72.20-S-1016E |
| 1.2 | Remove additional brake lamp | Model 447, 448.7 with code W65 (Tailgate) | AR82.10-S-5376EA |

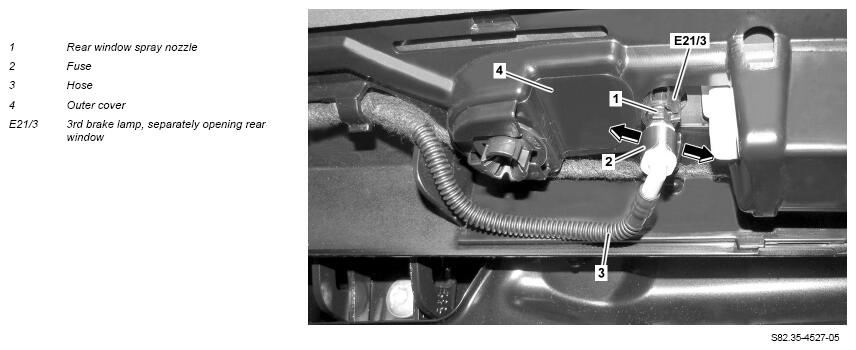

| 2 | Pull rear window spray nozzle (1) out of additional brake lamp of separately opening rear window (E21/3) | Model 447, 448 with code W64 (Separately opening rear window) |
|

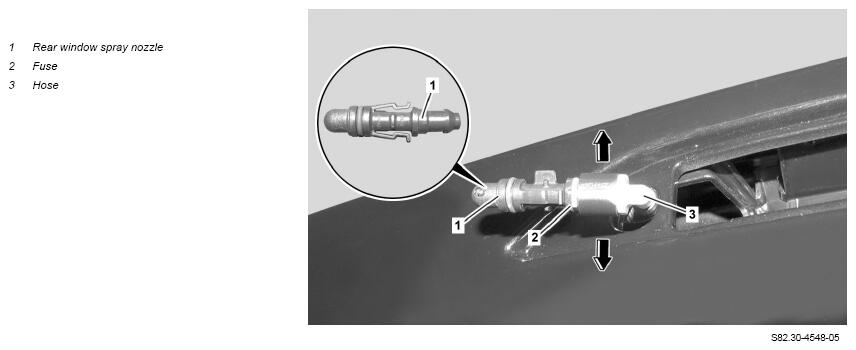

| 3 | Pull apart retainer (2) in direction of arrow until rear window spray nozzle (1) can be detached | Danger of breakage. |
|
| 4 | Remove rear window spray nozzle (1) from hose (3) | ||
| 5 | Install in the reverse order | ||
| 6 | Perform function check on washer system for rear window wiper | ||
| AP82.30-S-8252E |
