Remove/Install Liftgate Wiper Motor - AR82.30-S-6550E
Model 447, 448

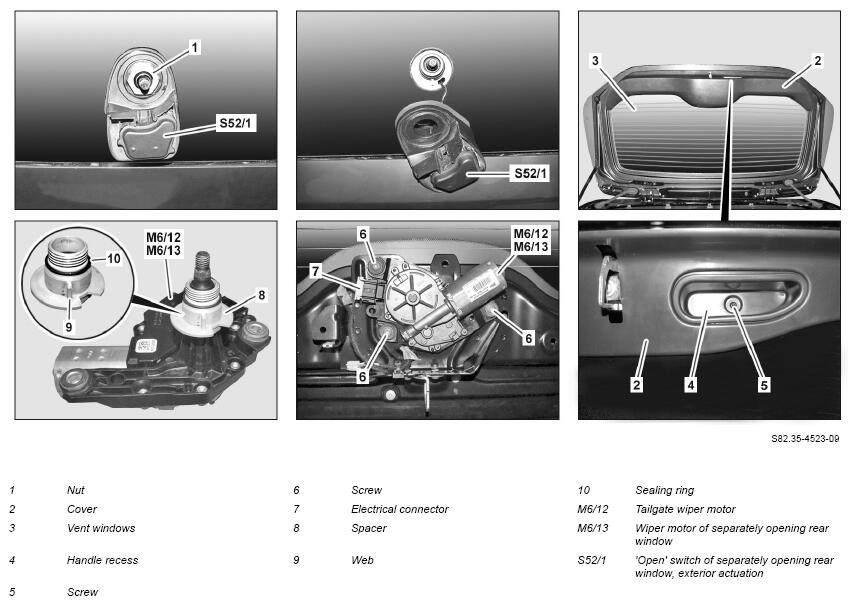

Shown On Model 447.8 With Code W64 (Rear window to be opened separately)
Shown On Model 447.8 With Code W64 (Rear window to be opened separately)

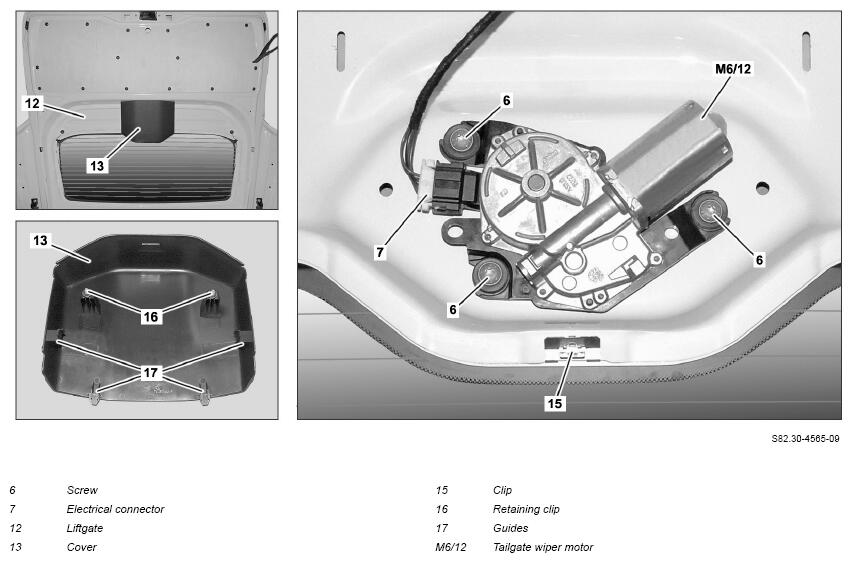

Shown On Model 447.6
| Remove/install | |||
| 1 | Detach rear window wiper | Model 447.8 with code W64 (Rear window to be opened separately), model 447 with code W65 (Liftgate) and with code W78 (Window on liftgate or hinged rear door with wiper/washer system), model 448 with code W65 (Liftgate), model 448.8 with code W68 (Electrically actuated liftgate) | AR82.30-S-6980E |
| 2 | Unscrew nut (1) | Model 447.8 with code W64 (Separately opening rear window) | |
| 3 | Open switch for rear window to be opened separately, detach external operation (S52/1) and let hang from electrical lines (11) | Model 447.8 with code W64 (Separately opening rear window) Otherwise the electrical lines (11) may be damaged. |
|
| 4.1 | Open vent window (3) | Model 447.8 with code W64 (Separately opening rear window) | |
| 4.2 | Open liftgate (12) | Model 447, 448 with code W65 (Tailgate) Model 448 with code W68 (EASY-PACK-tailgate) |
|
| 5 | Remove bolt (5) and remove handle recess (4) | Model 447.8 with code W64 (Separately opening rear window) |
Fig 2 |
| 6.1 | Remove cover (2) | Model 447.8 with code W64 (Separately opening rear window) |
Fig 2 |
| 6.2 | Remove paneling from liftgate (12) | Model 447.7 with code VK7 (Trim, rear door/liftgate, superior quality) Model 447 with code V23 (Interior trim, premium version) except code W64 (Separately opening rear window) except code ZL3 (National version for Latin America) except code ZU7 (National version for Canada) except code ZU8 (National version for USA) Model 448.7 with code V23 (Interior trim, premium version) Model 448.8 |
AR72.20-S-6445E |
| 6.3 | First unfasten cover (13) at clip (15), then unfasten retaining clips (16) and remove cover (13) from liftgate (12) | Model 447.6 Model 447.7 except code V23 (Interior trim, premium version) except code VK7 (Trim, rear door/liftgate, superior quality) Model 448.7 except code V23 (Interior trim, premium version) Reinstall cover (13) only after function test. |
|
| 7 | Detach film from liftgate (12) until the liftgate wiper motor (M6/12) is accessible | Model 447, 448 with code W65 (Tailgate) Model 448.8 with code W68 (EASY-PACK-tailgate) |
AR72.20-S-4100E |
| 8 | Disconnect electrical plug (7) | ||
| 9 | Remove bolts (6) | *BA72.20-Z-1011-03KOJ | |
| 10.1 | Remove liftgate wiper motor (M6/12) | Model 447, 448 with code W65 (Tailgate) Model 448.8 with code W68 (EASY-PACK-tailgate) |
|
| 10.2 | Remove wiper motor from rear window to be opened separately (M6/13) | Model 447.8 with code W64 (Separately opening rear window) Bar (9) on spacer (8) must point downwards and be flush with the vertical cutout (arrow B) on liftgate (12). Observe line routing for electrical lines (11) of switch for opening rear window to be opened separately, external operation (S52/1). The electrical lines (11) must be positioned in the cutout (arrow A) on the pop-out window (3). |
|
| 11 | Remove spacer (8) from wiper motor for rear window to be opened separately (M6/13) | Model 447.8 with code W64 (Separately opening rear window) If the spacer (8) or the wiper motor for rear window to be opened separately (M6/13) is replaced. |
|
| 12 | Remove sealing ring (10) from spacer (8) | Model 447.8 with code W64 (Separately opening rear window) |
|
| 13 | Install in the reverse order | ||
| Check | |||
| 14 | Perform function test of liftgate wiper motor (M6/12) or wiper motor for rear window to be opened separately (M6/13) |
LIFTGATE
| Number | Designation | Model 447, 448 | |
|---|---|---|---|
| BA72.20-Z-1011-03KOJ | Screw/bolt, wiper motor to liftgate | Nm | 8 |
