Remove/Install Headlamp Control Unit - AR82.10-S-4660E
Model 447
With Code L45 (Multibeam LED with high beam assist plus)
Model 447
With Code LG2 (LED Intelligent Light System)
Model 448.8
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Perform commissioning of left headlamp control unit (E1/1n9) or right headlamp control unit (E2/1n9) using diagnostic system | When replacing left headlamp control unit (E1/1n9) or right headlamp control unit (E2/1n9). | |
| AD00.00-S-2000-04E | |||
| 2 | Remove left front LED lamp unit (E1/1) or right front LED lamp unit (E2/1) | AR82.10-S-4730E | |

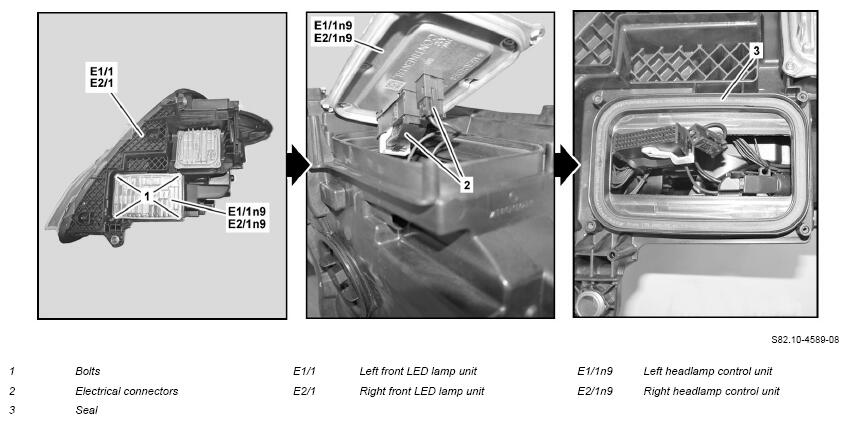

| 3 | Remove screw/bolts (1) | ||
| 4 | Pull out left headlamp control unit (E1/1n9) or right headlamp control unit (E2/1n9) until electrical connectors (2) can be disconnected | ||
| 5 | Disconnect electrical connectors (2) and remove left headlamp control unit (E1/1n9) or right headlamp control unit (E2/1n9) | ||
| 6 | Install in the reverse order. | ||
| Check | |||
| 7 | Carry out function test of the exterior lights |
