Remove/Install HERMES Control Unit - AR82.95-S-0019EH

Model 447, 448 With Code JH3 (Communication module (LTE) for digital services) With Code XM7 (MOPF II)

Courtesy of MERCEDES-BENZ USA

Shown On Model 447.7## 2#

Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Model 447 with engine 780	AH00.00-Z-0300-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install
1	Commission control unit (1) using diagnostic system.	If the control unit (1) is being replaced.
		Remove diagnostic system.	AD00.00-S-2000-04E
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
3	Remove left cover under instrument panel.	Model 447.6/7 with code LC7 (Front footwell illumination), model 447.8, 448	AR68.10-S-1500E

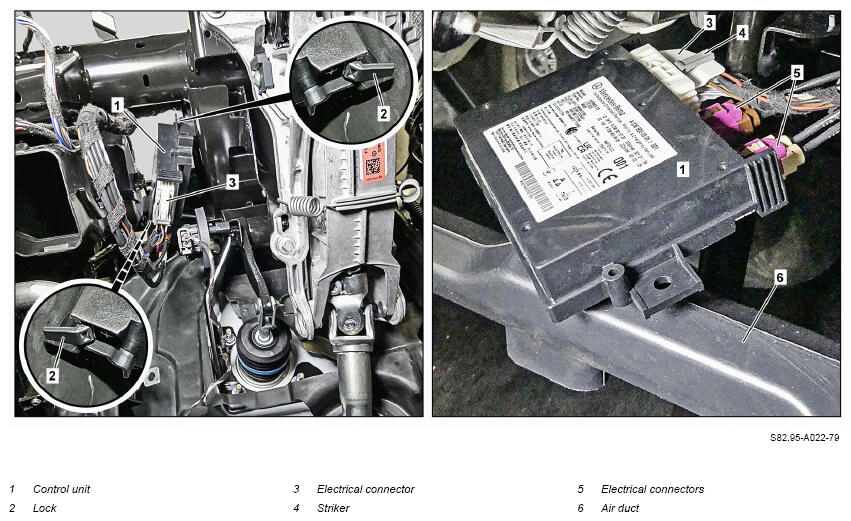

4	Unhook air duct (6) from instrument panel.
5	Remove control unit (1) from holder.	To do so, release locks (2).
6	Pull control unit (1) downwards slightly until electrical connector (3) is accessible.
7	Disconnect electrical connector (3).	To do so, release U-shaped striker (4) and detach electrical connectors (3).
8	Remove control unit (1).	To do so, release and disconnect electrical connectors (5).
9	Install in the reverse order.
	Check
10	Perform function test of control unit (1).
