Remove/Install Global Positioning System (GPS) Antenna In Outside Mirror - AR82.85-S-0028E
Model 447.6/7 as of 10/1/21 With Code E3C (Audio 30)
Model 447.6/7 as of 10/1/21 With Code EA4 (Audio 40)
Model 447.8 as of 10/1/21, 448.8 as of 10/1/21 With Code E6M (MBUX multimedia system Mid)
Model 447.8 as of 10/1/21 With Code E6H (MBUX multimedia system High)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||
| 1 | Completely remove left outside mirror. | AR88.70-S-9000E | |
| 2 | Remove trim of outside mirror. | AR88.70-S-9040E | |

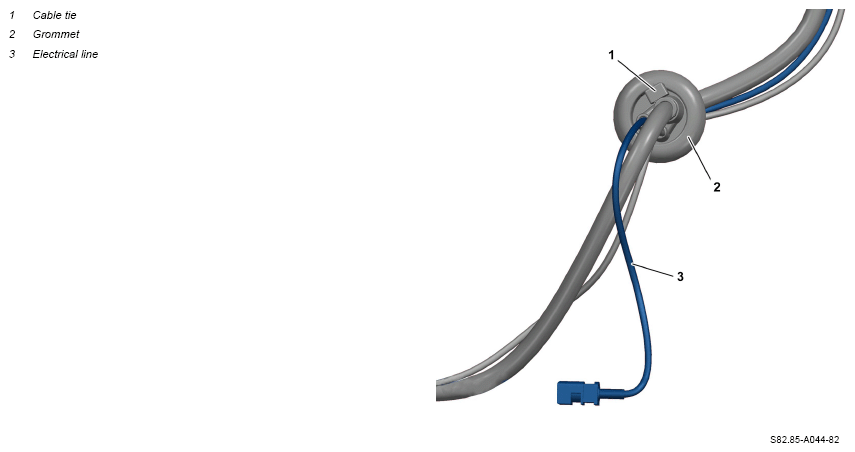

| 3 | Remove cable tie (1) at grommet (2). | ||
| 4 | Expose electric line (3) of GPS antenna (A2/47) using a suitable pull-off aid. | ||

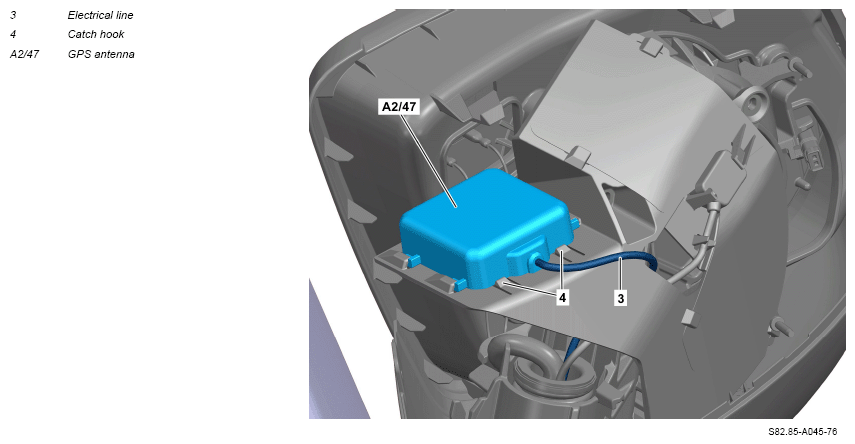

| 5 | Release catch hooks (4) and remove GPS antenna (A2/47) from outside mirror. | ||
| 6 | Install in the reverse order. |
