Remove/Install Antenna For OLU On A-Pillar - AR82.62-S-0034E

Model 447

Courtesy of MERCEDES-BENZ USA

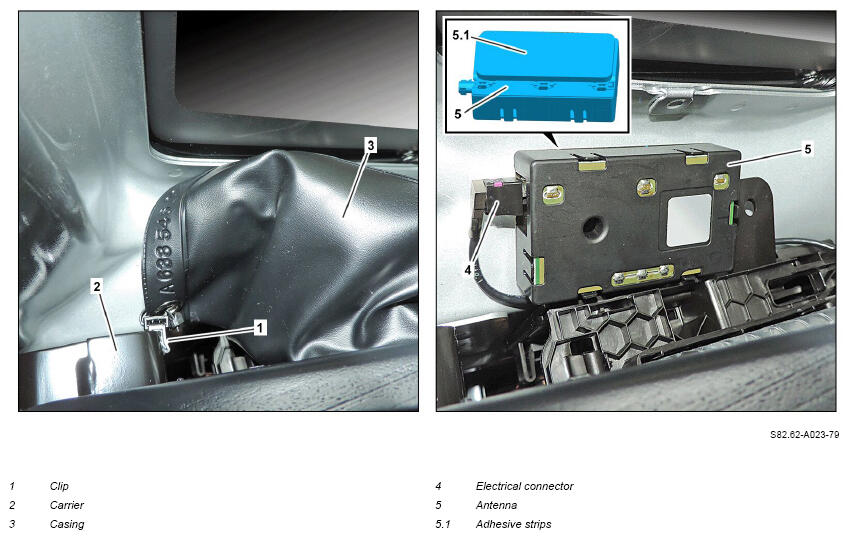

Shown on left side of vehicle

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove
1	Remove trim at respective A-pillar.	An antenna (5) for the OLU (Onboard Logic Unit) system is installed at both the left and right A-pillar.	AR68.30-S-4050E
2	Remove clamp (1) at carrier (2) and slide casing (3) out of working area of antenna (5).	Long wedge	Fig 1
3	Release and disconnect electrical connector (4).
4	Carefully release adhesive strip (5.1) of antenna (5) and remove antenna (5).	Carefully release adhesive strip (5.1) of antenna (5). Otherwise, antenna (5) may be damaged. Note assembly position of antenna (5).
	Check
5	Check adhesive strip (5.1) of antenna (5) for damage.	If antenna (5) is not replaced. If there is a problem, ↓ replace adhesive strip (5.1) with a suitable commercially available adhesive strip.
	Clean
6	Clean surface to be glued.	The bonding surface must be dry, free of dust and grease. Otherwise, sufficient adhesion of antenna (5) is not guaranteed. Cleaner	*BR00.45-Z-1025-04A
	Install
7	Position antenna (5) and glue on.	Note assembly position of antenna (5).
8	Connect electrical connector (4).
9	Position casing (3) and attach clamp (1) at carrier (2).
10	Install trim at respective A-pillar.		AR68.30-S-4050E
	Check
11	Park vehicle in outdoor area and perform function test through actual value query.
			AD00.00-S-2000-04E

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
