(Remove/Install Rear Sound Generator External Speaker - AR82.27-S-0007E)
Model 447.6
With Code J2A (Acoustic ambient protection)
With Code M8E (Electric motor 85 kW/battery 60 kWh (usable))
Model 447.8
With Code J2A (Acoustic ambient protection)
With Code ME4 (Electric motor 145 kW)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Lift vehicle, jack up. | AR00.60-S-1000E | |

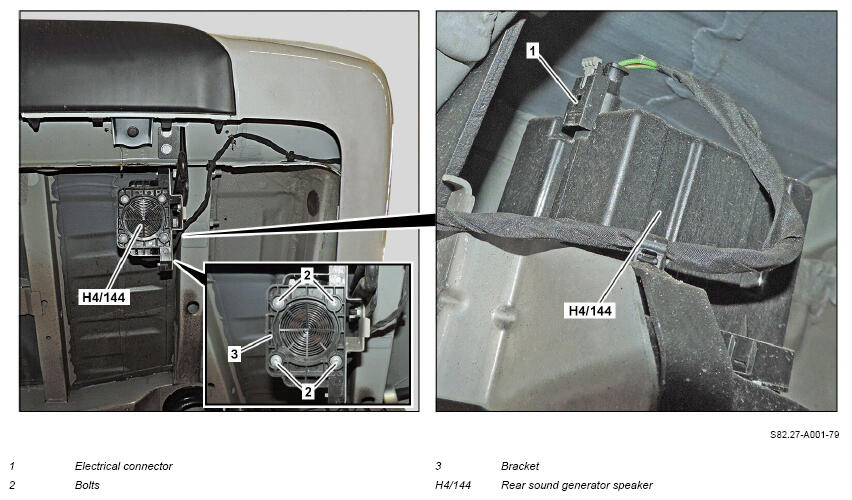

| 2 | Release electrical connector (1) and disconnect. | ||
| 3 | Unscrew screws (2) and remove rear sound generator speaker (H4/144) from holder (3). | ||
| 4 | Install in the reverse order. | ||
| 5 | Commission rear sound generator speaker (H4/144). | If rear sound generator speaker (H4/144) was replaced. | |
| AD00.00-S-2000-04E | |||
| Check | |||
| 6 | Perform function test of rear sound generator speaker (H4/144). |
