User Interface, Basic Function - GF82.00-D-9901A
Model All (Light transporter)
Overview
This document contains information on:
- General
- Function
- Control and display concept
- Instrument cluster
- Audio/COMAND display control unit
General
The network architecture connects all the participating systems, control elements, control units and indicators in the vehicle with each other.
Function
The operating concept is based on several levels of increasing information density:
- Upper control level, main screen: In addition to changing the application, the most important information across the system is displayed, e.g. the arrival time and the song currently being played.
- Second control level: Main applications, e.g. the radio, contain the most important information and control options.
- Third operating level: Rarely used information and settings are listed in the submenus.
Further components of the operating concept can be:
- Voice control: The voice control can be used to operate various functions, e.g. music search and navigation, or vehicle function such as, e.g. climate control and seat heating.
Control and display concept
The aim of the control and display concept is to provide a high degree of user friendliness.
This aim is achieved by:
- Easily understandable and visible symbol logic.
- Ergonomics: all key controls are located within the driver's radius of action.
- Low potential for distraction during control operations.
- Understandable menu structures.
- Intuitive, targeted menu guidance.
Another aspect of the user-friendly interaction between man and machine is the graphic display of the user interfaces. Two independent color displays are used for this.
Information is conveyed in an understandable way by means of visualizations, animations and sound concepts. Animated contents help the user to understand the consequences of his actions.
Sound concepts allow the driver to recognize the purpose of the action from its acoustics. This draws the driver's attention to the vehicle's surroundings, makes them aware of system messages, or prompts them to confirm a control action.
A variety of functions can be operated from various control points. The integration of mobile devices means that external applications, too, can be included in the operating concept. However, some functions, e.g. voice control, are unavailable if, for example, a smartphone is integrated.
All settings can also be personalized. The user interface helps with decision making and proposes intelligent suggestions for this. This is based on user-specific settings and driving habits, e.g. radio stations and tone settings or the time and location.
Depending on the model, a special mode enables the information volume to be reduced and only the relevant information displayed during long journeys or at night.

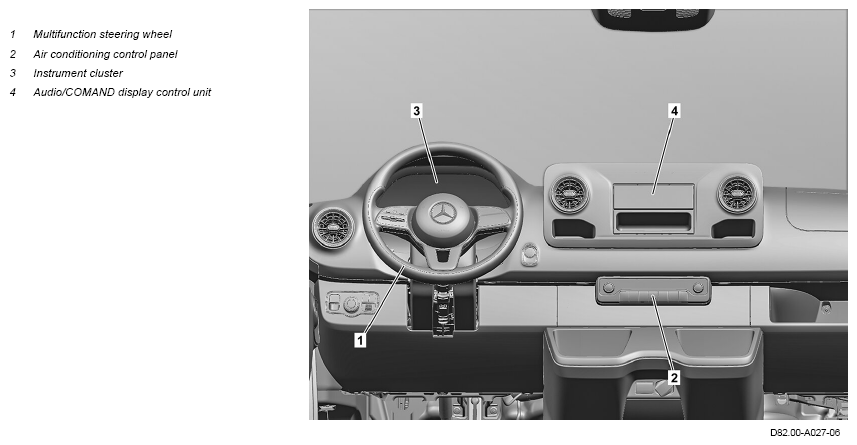

Example illustration of operating and indicators
Instrument cluster
The instrument cluster (3) provides the driver with information relevant to driving, e.g. fuel supply, engine speed and coolant temperature, in a clearly arranged layout. It also informs him about the current condition of the systems installed in vehicle. System actions, recommendations and malfunctions are communicated to the driver in the form of text messages.
The content displayed can sometimes be freely configurable in the vehicle. The display in the instrument cluster (3) is operated with the left finger navigation pad on the multifunction steering wheel (1). The user can choose between various different visual styles depending on mood or to match the interior.
In full screen mode for navigation, driver assistance and trip data, the most important contents are already shown in a combined summary.
Audio/COMAND display control unit
The Audio/COMAND display control unit (4) shows information from the multimedia system and menu for setting various systems in the vehicle. The user interface of the Audio/COMAND display control unit (4) is touch-sensitive.
The multimedia system and various system settings in the vehicle can be operated using the following control elements:
- Audio/COMAND display control unit (4)
- Right finger navigation pad on multifunction steering wheel (1)
| Function schematics | |||
| Function schematic for user interface | Model 907, 910 with code XJ4 (Modification year G4-I) | PE54.30-D-2505-97A | |
| Further basic functions | |||
| Basic function of head unit operating unit | GF54.21-D-2008A | ||
| Instrument cluster control, basic function | GF54.30-D-1001A | ||
| Multimedia system control, basic function | GF82.85-D-9904A | ||
| Multifunction steering wheel, basic function | GF82.90-D-2005A |
