Replace End CROSSMEMBER-Outer Part - Ar64.20-S-1110E
Model 447, 448
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. Model 447 with engine 780 |
AS00.00-Z-0035-01A | |
| The high voltage used for electric welding presents a lethal hazard. Risk of explosion from welding in areas close to highly inflammable materials. Risk of injury from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases | Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. | AS00.00-Z-0007-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 447 with engine 780 | AH00.00-Z-0300-01A |
| Notice | Special instructions for lifting and supporting vehicle | AH00.60-S-0100-01KOA | |
| Notice | General information on body repair | AH60.00-P-0001-01KOA | |
| Notice | Measures for preventing damage to components when performing electric welding and soldering work | AH60.00-P-0001-02A | |
| General information on MB materials | AH98.00-P-9409-03A | ||
| Remove | |||
| 1 | Remove all detachable parts in area of repair point. | ||
| 2 | Cover all detachable parts remaining in vehicle with welding protection blankets. | ||
| 3 | Remove soundproofing. | AR60.00-S-1752E | |

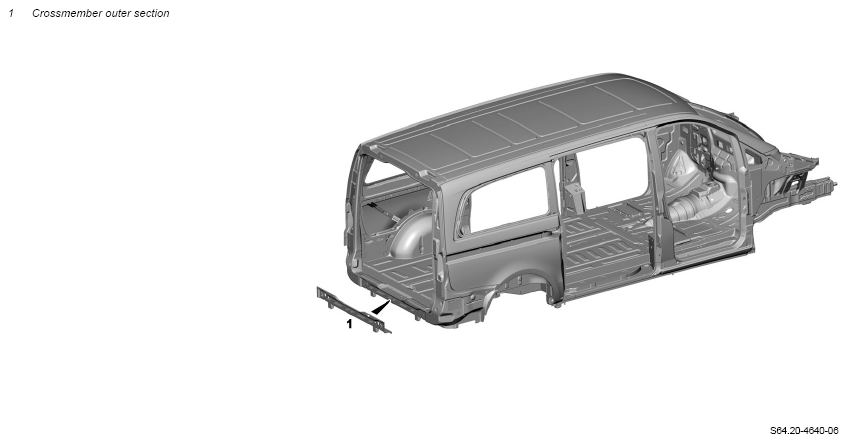

| 4 | Remove crossmember outer section (1). | Spindle grinder Rotary wire brush Wet and dry vacuum cleaner |
AR64.20-S-1110-01E |
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| 5 | Prepare crossmember outer section (1) for installation. | Wet and dry vacuum cleaner |
AR64.20-S-1110-02E |
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| Install | |||
| 6 | Weld in crossmember outer section (1). | AR64.20-S-1110-03E | |
| 000 588 12 84 00 Welder | WS00.00-P-0318K | ||
| 000 588 13 84 00 Welder | Clamping pliers (Standard) Wet and dry vacuum cleaner |
WS60.00-P-0437K | |
| 7 | Clean weld joints and sheet metal flanges with rotary wire brush. | ||
| 8 | Remove welding protection blankets. | ||
| Risk of explosion caused by paint vapors igniting. Risk of poisoning caused by inhaling paint vapors. | No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated. | AS98.00-Z-0002-01A | |
| 9 | Prime repair area with a primer filler. | ||
| Notice | Notes on paintwork repairs | http://xentryportal.mercedes-benz.com |
AH98.00-P-9408-02A |
| 10 | Seal seam after repair. | AR97.10-S-4000E | |
| Risk of explosion caused by paint vapors igniting. Risk of poisoning caused by inhaling paint vapors. | No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated. | AS98.00-Z-0002-01A | |
| 11 | Paint repair area and adjacent surfaces. | ||
| Notice | Notes on paintwork repairs | http://xentryportal.mercedes-benz.com |
AH98.00-P-9408-02A |
| 12 | Supplement cavity preservation. | AR97.20-S-1500E | |
| 13 | Install soundproofing. | AR60.00-S-1752E | |
| 14 | Install all detachable parts in area of repair point. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
