Cut Out Outer Part Of End CROSSMEMBER - Ar64.20-S-1110-01E

Model 447, 448

Courtesy of MERCEDES-BENZ USA

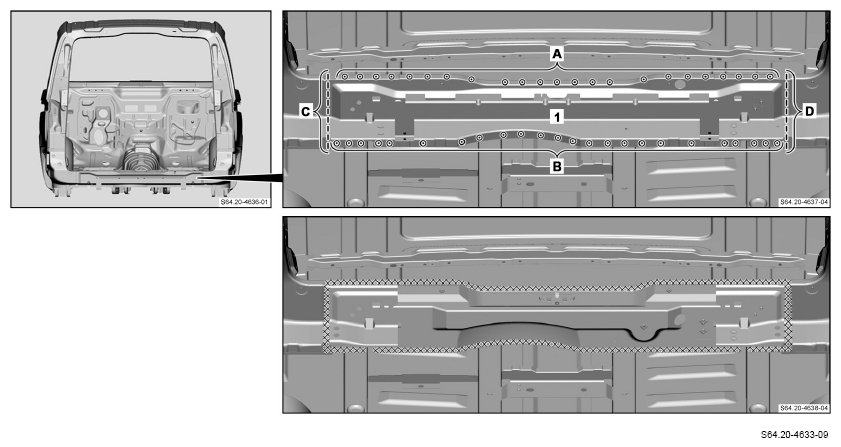

1. Expose spot welds on crossmember outer section (1) and cut out (areas A and B).
2. Expose weld seams and cut (areas C and D).
3. Remove damaged crossmember outer section (1).
4. Grind mating surfaces down to bare metal in the cross-hatched inner C-pillar sidewall.

   Sand down spot weld flanges to bare metal on both sides.

5. Remove shavings and drill chips.
6. Coat insides of spot weld flanges with zinc dust paint.
