Weld In Outer End Cross Member Section - Ar64.20-S-1110-03E

Model 447, 448

  1. Install crossmember outer section (1) fit and fix in place.
  2. Crossmember outer section (1) POLARIZATION RESISTANCE SINGLE-ROW SPOT WELD (areas A and B).
  3. Crossmember outer section (1) SHIELDED GAS SEAM WELD (areas C and D).
  4. Clean weld joints.
  5. Remove shavings and drill chips.

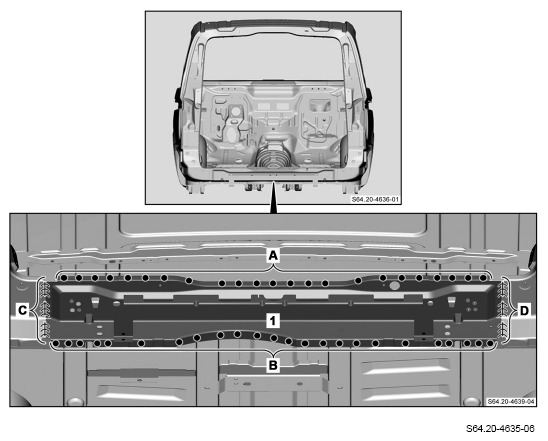

G16487959Courtesy of MERCEDES-BENZ USA
