Assess Condition Of Brake Linings - AP42.10-S-4252E
Model 447, 448
Example
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 447 with engine 780 | AH00.00-Z-0300-01A |
| Notice | Special instructions for lifting and supporting vehicle | AH00.60-S-0100-01KOA | |
| Check | |||
| 1 | Lift vehicle with vehicle lift. | Only if no pit is available. | |
| AR00.60-S-1000E | |||

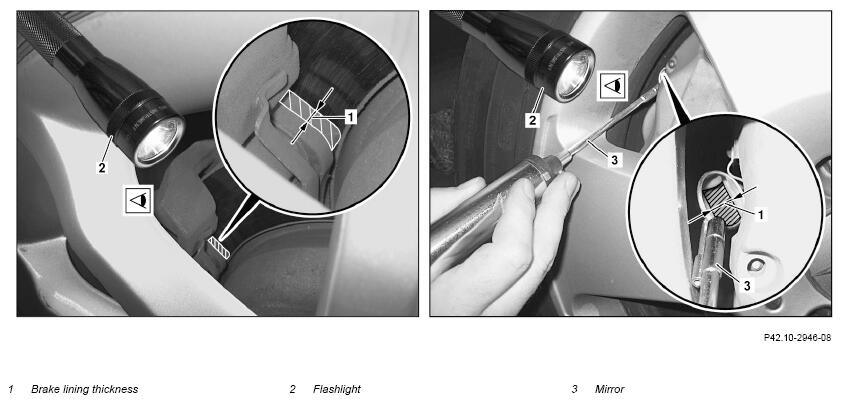

| 2 | Check brakepad thickness (1) of front axle brakepads through wheel disk opening and from underside of vehicle. | The thickness of the pad backing plate can be used as a guide when assessing brake lining thickness. |
|
If it is not possible to check through the opening on the wheel disk or from the vehicle underside ↓ remove wheels and perform check. |
*BE42.10-Z-1001-06KOE | ||
| AR40.10-S-1100E | |||
| 3 | Check brakepad thickness (1) of rear axle brakepads through wheel disk opening and from underside of vehicle. | The thickness of the pad backing plate can be used as a guide when assessing brake lining thickness. |
|
If it is not possible to check through the opening on the wheel disk or from the vehicle underside |
*BE42.10-Z-1001-18KOE | ||
| remove wheels and perform check. |
AR40.10-S-1100E | ||
| 4 | Replace brakepads per axle. | Only when the wear limit of the brake linings is reached or exceeded. | |
| Remove/check/install front axle brake pads | AR42.10-S-1610E | ||
| Remove/check/install rear axle brake pads | AR42.10-S-1710E | ||
Otherwise, an impaired braking effect may lead to people being injured and material damaged or the environment polluted. |
CHECK VALUES FOR BRAKEPAD
| Number | Designation | Model 447, 448 | ||
|---|---|---|---|---|
| BE42.10-Z-1001-06KOE | Brake lining thickness | New (with pad backing plate) | mm | 20, 70 |
| Wear limit (without pad backing plate) | mm | 3, 0 | ||
| Wear limit (with backing plate) | mm | 9, 23 | ||
| Pad backing plate | mm | 6, 23 | ||
CHECK VALUES FOR BRAKEPAD
| Number | Designation | Model 447, 448 | ||
|---|---|---|---|---|
| BE42.10-Z-1001-18KOE | Brake lining thickness | New (with pad backing plate) | mm | 18, 20 |
| Wear limit (without pad backing plate) | mm | 3, 0 | ||
| Wear limit (with backing plate) | mm | 9, 23 | ||
| Pad backing plate | mm | 6, 23 | ||
