Remove/Install Left Upper Rear-End Door Inner Lock - AR72.40-S-4430E

Model 447.6/7

G16488412

Courtesy of MERCEDES-BENZ USA

	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove
1	Remove inner paneling from window frame on left rear-end door (3)	Model 447.7 with code V23 (Interior trim, premium version) except code ZU7 (National version for Canada) except code ZU8 (National version for USA) Model 447.7 with code VK7 (Trim, rear door/liftgate, superior quality) with code ZU7 (National version for Canada) Model 447.7 with code VK7 (Trim, rear door/liftgate, superior quality) with code ZU8 (National version for USA)	AR72.20-S-6630E

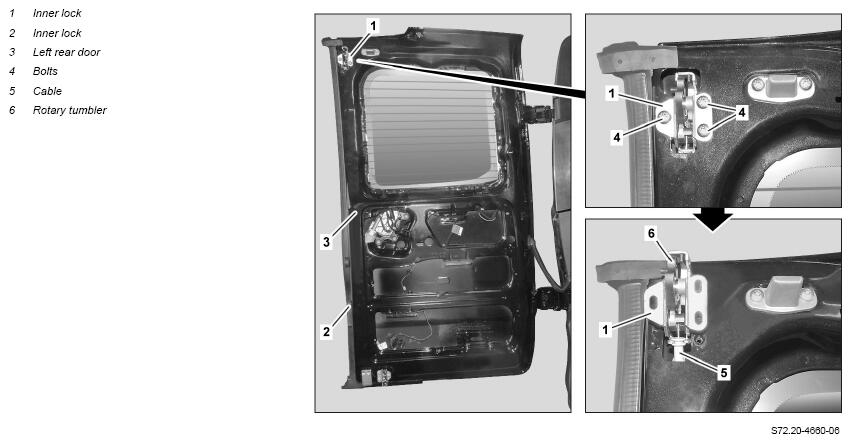

2	Mark installation position of inner lock (1)
3	Remove inner lock (2) from left rear-end door (3)	Detach inner lock (2) to remove inner lock (1). Do not remove cables from inner lock (2).	AR72.20-S-4844E
4	Remove screws (4)
5	Remove cable (5) from inner lock (1)
	Install
6	Install cable (5) on inner lock (1)
7	Tighten inner lock (1) with bolts (4)	Observe markings.
8	Install inner lock (2) on left rear-end door (3)		AR72.20-S-4844E
9	Install inner paneling on window frame on left rear-end door (3)	Model 447.7 with code V23 (Interior trim, premium version) except code ZU7 (National version for Canada) except code ZU8 (National version for USA) Model 447.7 with code VK7 (Trim, rear door/liftgate, superior quality) with code ZU7 (National version for Canada) Model 447.7 with code VK7 (Trim, rear door/liftgate, superior quality) with code ZU8 (National version for USA)	AR72.20-S-6630E
	Check
10	Close rotary tumbler (6) on inner lock (1) with suitable tool
11	Actuate inner lock (1) and check whether inner lock (1) opens and arrests correctly
12	Check whether inner lock (1) is seated correctly in lock striker and tighten bolts (4)	If it is necessary to correct the seat of the inner lock (1) in the lock striker: ↓ Adjust inner lock (1) in relation to lock striker. Bolt, inner lock to rear-end door	*BA72.20-Z-1012-01KOJ

REAR-END DOOR

Number	Designation		Model 447.6/7 with code W54	Model 447.6/7 with code W50
BA72.20-Z-1012-01KOJ	Bolt, inner lock to rear-end door	Nm	6	6
