Remove/Install Inner Trim On Window Frame Of Rear-End Door - AR72.20-S-6630E
Model 447.7
With Code V23 (Interior trim, premium version)
Except Code ZU7 (National version for Canada)
Except Code ZU8 (National version for USA)
Model 447.7
With Code VK7 (Trim, rear door/liftgate, superior quality)
With Code ZU7 (National version for Canada)
Model 447.7
With Code VK7 (Trim, rear door/liftgate, superior quality)
With Code ZU8 (National version for USA)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||
| 1 | Open corresponding rear-end door | ||

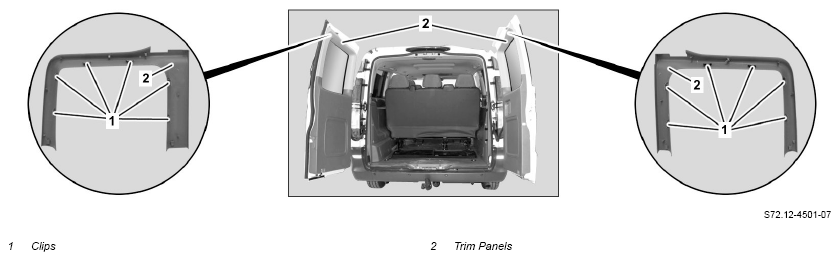

| 2 | Detach paneling (2) from clips (1) and remove | Fig 1 | |
| 3 | Install in the reverse order |
