Remove/Install Inner Lock On Rear-End Door - AR72.20-S-4844E

Model 447.6/7

Courtesy of MERCEDES-BENZ USA

	Remove/install

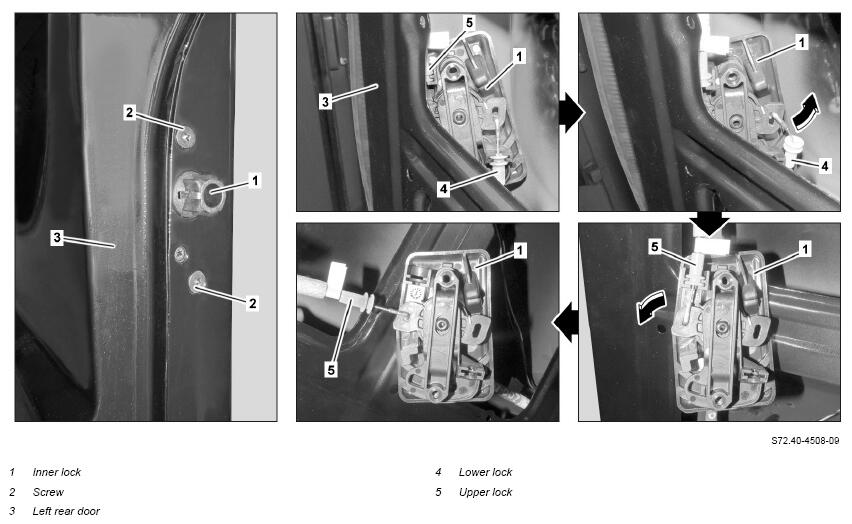

1	Detach door foil on left rear-end door (3) until inner lock (1) is accessible	Install door foil only after checking function of inner lock (1).	AR72.20-S-4100E
2	Remove handle for inner lock (1)		AR72.20-S-4870E
3	Remove screws (2)	Bolt, inner lock to rear-end door	*BA72.20-Z-1012-01KOJ
4	Unclip lower lock (4), turn 90° and remove
5	Unclip upper lock (5), turn 90° and remove
6	Install in the reverse order
	Check
7	Check inner lock (1) for proper function

REAR-END DOOR

Number	Designation		Model 447.6/7 with code W54	Model 447.6/7 with code W50
BA72.20-Z-1012-01KOJ	Bolt, inner lock to rear-end door	Nm	6	6
