Remove/Install Lower B-Pillar Paneling - AR68.30-S-4700-02E

Model 447, 448

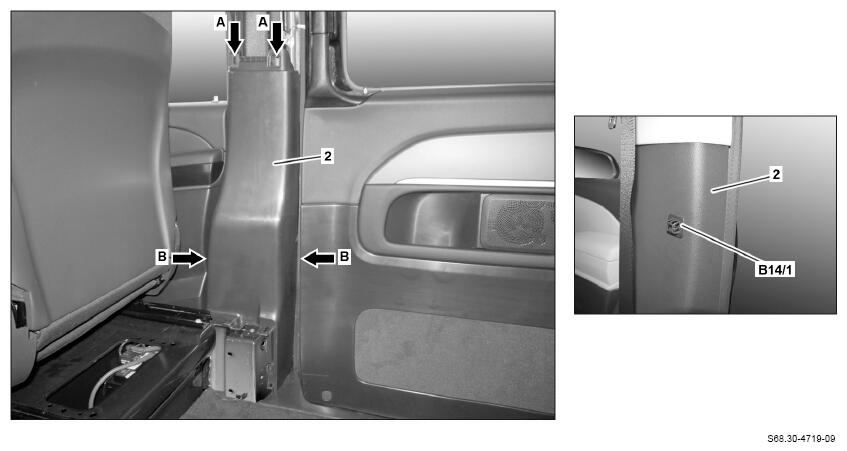

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown On model 447.8 on right side of vehicle

1. Detach lower B-pillar paneling (2) in area of arrows (A) with assembly wedge.
2. Detach lower B-pillar paneling (2) in area of arrows (B) with assembly wedge.
3. 1. Model 447.6/7

      Model 447.8 except code ZK7 (Equipment line MARCO POLO)

      Model 448

      Remove lower B-pillar paneling (2) upward.

   2. Model 447.8 with code ZK7 (Equipment line MARCO POLO)

      Remove lower B-pillar paneling (2) upward until electrical connector on interior temperature display temperature sensor (B14/1) is accessible.

4. Model 447.8 with code ZK7 (Equipment line MARCO POLO)

   Disconnect electrical connector from interior temperature display temperature sensor (B14/1) and remove lower B-pillar paneling (2).

5. Model 447.8 with code ZK7 (Equipment line MARCO POLO)

   Unclip interior temperature display temperature sensor (B14/1) from lower B-pillar paneling (2).

   When replacing lower B-pillar paneling (2).

6. Install in the reverse order.
