Remove/Install Front Left Side Paneling In Rear - AR68.30-S-1205E
Model 447.7
With Code V23 (Interior trim, premium version)
Except Code T19 (Sliding door left)
Model 447.8
Except Code T19 (Sliding door left)
Except Code ZK7 (Equipment line MARCO POLO)
Model 448.7
With Code V23 (Interior trim, premium version)
Except Code T19 (Sliding door left)
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||
| 1.1 | Remove 1st row passenger bench seat | Model 447.7 with code U60 (Passenger compartment seats, 2-passenger bench seat, 1st row), model 447.7 with code U65 (Passenger compartment seats, 3-passenger bench seat, 1st row), model 447.7 with code U71 (3-passenger bench seat, 1st row with folding outer seat) | AR91.21-S-4425E |
| 1.2 | Remove 1st row comfort passenger bench seat | Model 447.7/8 with code US1 (Comfort 2-passenger bench seat, 1st rear row), model 447.7/8 with code US4 (Comfort 3-passenger seat, 1st row, outer folding seat), model 448.7 with code US1 (Comfort 2-passenger seat, 1st rear row), model 448.7 with code US4 (Comfort 3-passenger seat, 1st row, outer folding seat) | AR91.21-S-4425EE |
| 1.3 | Remove left front passenger seat | Model 447.8 with code US6 (Individual seat, 1st rear row, left) | AR91.21-S-4460E |
| 2 | Remove paneling on left C-pillar | AR68.30-S-4490E | |
| 3 | Remove upper and lower paneling from left B-pillar | AR68.30-S-4700E | |
| 4 | Remove mounting clips (3) | Fig 2 | |
| 5 | Detach left rear side paneling (2) in front area (arrows A) until sufficient space is available to remove the front side paneling (1) | Fig 1 | |
| 6 | Detach front side paneling (1) in area of retaining clips (4) | ||
| 7 | Move long wedge (5) between front side paneling (1) and window frame (arrows B) and unclip retaining clip (6) from front side paneling (1) | Carefully unclip retaining clips (6). Otherwise the side paneling (1 and the retaining clips (6) can be damaged. |

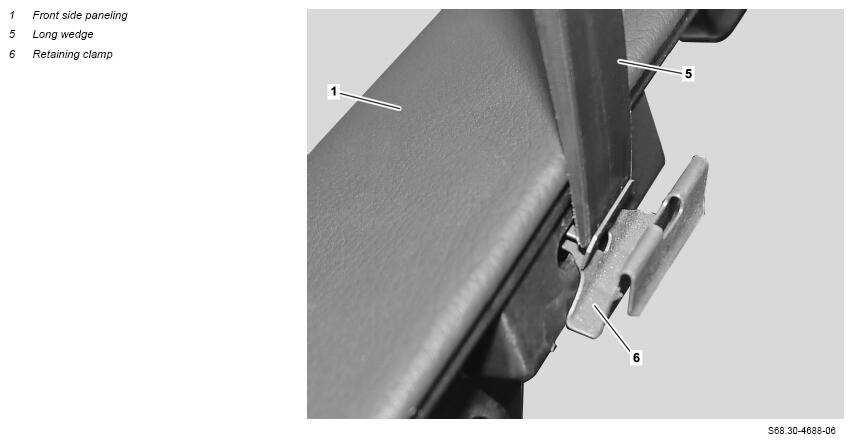

Fig 1 |
| 8 | Disconnect all electrical connectors from lines which are routed to the front side paneling (1) | If installed. | |
| 9 | Remove front side paneling (1) | ||
| 10 | Install in the reverse order |
