Remove/Install Center Air Vent - AR83.10-S-4503EE
Model 447.6/7, 448.7 Except Code XM7 (MOPF II)
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||
| 1 | Remove center dashboard cover | AR68.10-S-3430E | |

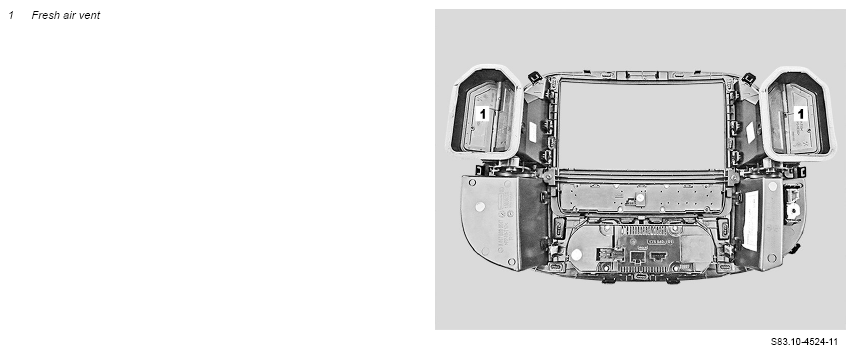

| 2 | Release catch hook at center instrument panel cover and remove left or right air vent (1) | In case of damage ↓ Replace center instrument panel cover |
|
| 3 | Install in the reverse order |
