Remove/Install Sliding Door Handle Bearing Bracket - AR72.16-S-4012E
Model 447, 448
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||

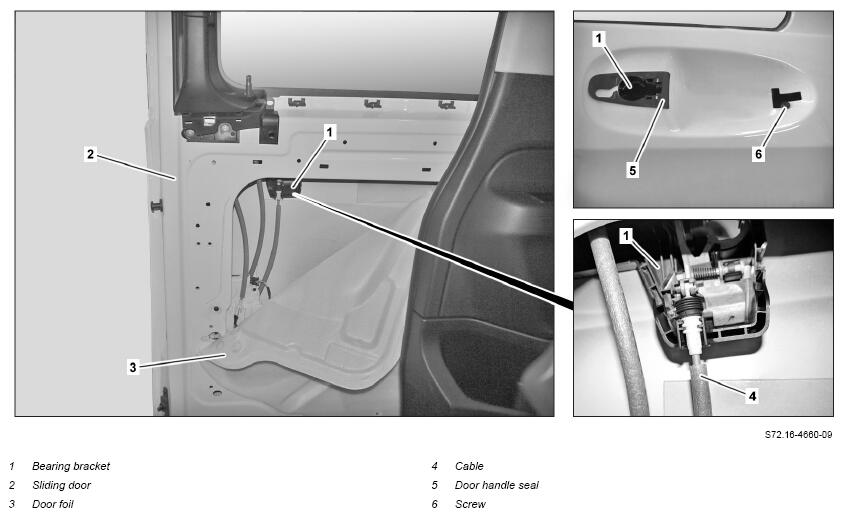

| 1 | Remove door trim from sliding door (2) | AR72.16-S-6610E | |
| 2 | Detach door foil (3) from sliding door (2) until bearing bracket (1) can be accessed | ||
| 3 | Remove outside door handle from sliding door (2) | AR72.16-S-2220E | |
| 4 | Remove door handle seal (5) from sliding door (2) | ||
| 5 | Remove cable (4) from bearing bracket (1) | ||
| 6 | Remove bolt (6) | ||
| 7 | Remove bearing bracket (1) from sliding door (2) | ||
| 8 | Install in the reverse order | ||
| Check | |||
| 9 | Perform function check of sliding door lock and outside door handle |
