Remove/Install Front Door Inner Actuation - AR72.10-S-1400E
Model 447, 448
With Code LC1 (ambient lighting)

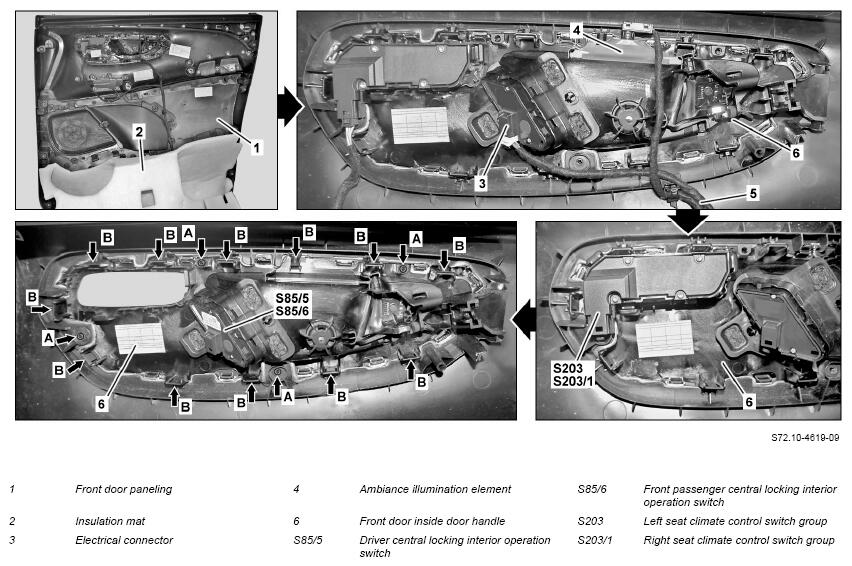

Shown On model 447.813 Except Code SF1 (Electrically adjustable driver's seat) With Code H16 (Seat heater for driver)

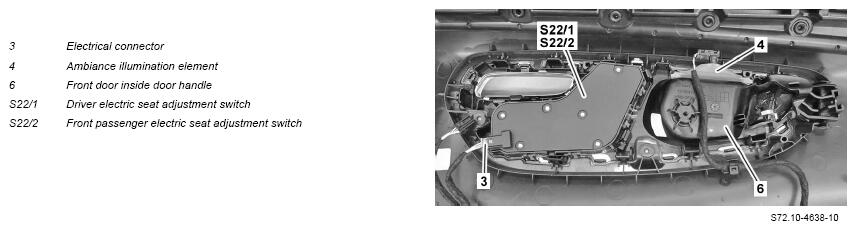

Shown On model 447.813 With Code SF1 (Electrically adjustable driver's seat)
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||
| 1 | Remove front door paneling (1) | AR72.10-S-6575E | |
| 2 | Detach insulation mat (2) in upper area as shown | ||
| 3 | Disconnect electrical connection (3) | ||
| 4 | Remove ambience illumination lamp unit (4) from front door inside door handle (6) | ||
| 5 | Remove corresponding seat climate switch group (S203, S203/1) | Model 447, 448 with code H15 (Seat heater for front passenger) with code LC1 (ambient lighting) Model 447, 448 with code H16 (Seat heater for driver) with code LC1 (ambient lighting) |
AR91.30-S-0080E |
| 6 | Remove screw/bolts (arrows A) | ||
| 7 | Unlock catches (arrows B) and remove front door inside door handle (6) | ||
| 8.1 | Remove corresponding central locking inside door handle switch (S85/5, S85/6) | Model 447 with code LC1 (ambient lighting) except code SF1 (Driver's seat electrically adjustable) except code SF2 (Electrically adjustable codriver's seat) Model 448 with code LC1 (ambient lighting) except code SF1 (Driver's seat electrically adjustable) except code SF2 (Electrically adjustable codriver's seat) When replacing front door inside door handle (6). |
|
| 8.2 | Remove corresponding electrical seat adjustment switch (S22/1, S22/2) | When replacing front door inside door handle (6). Model 447 with code LC1 (ambient lighting) with code SF1 (Driver's seat electrically adjustable) with code SF2 (Electrically adjustable co-driver's seat) Model 448.8 with code LC1 (ambient lighting) with code SF1 (Driver's seat electrically adjustable) with code SF2 (Electrically adjustable co-driver's seat) |
AR91.29-S-2522E |
| 9 | Install in the reverse order | ||
| Check | |||
| 10 | Check all electrical components in repair area for proper function |
