Remove/Install Heated Seat Switch - AR91.30-S-0080E
Model 447, 448
with code H15 (Seat heater for front passenger)
Model 447, 448
with code H16 (Seat heater for driver)

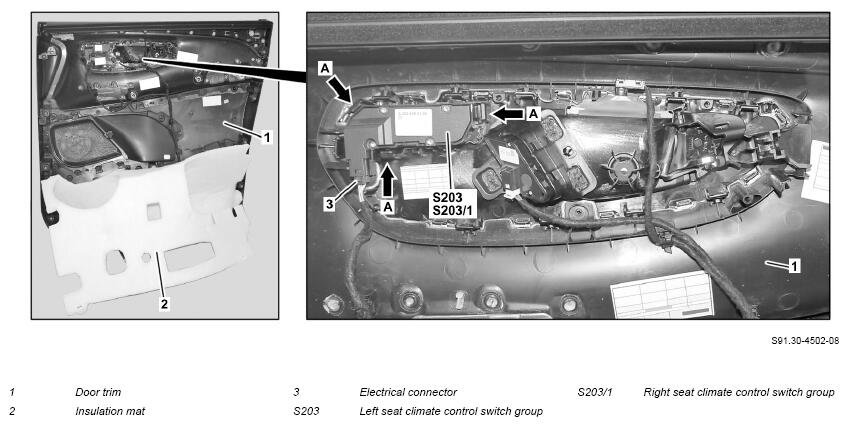

Shown on left door trim (1)
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||
| 1 | Remove door trim (1) from left or right front door | AR72.10-S-6575E | |
| 2 | Detach insulation mat (2) in upper area as shown | Model 447.8, 448.8 with code H15 (Seat heater for front passenger) Model 447.8, 448.8 with code H16 (Seat heater for driver) |
|
| 3 | Release and disconnect electrical plug (3) | ||
| 4 | Release catch hooks (arrows A) and remove left seat climate control switch group (S203) or right seat climate control switch group (S203/1) | ||
| 5 | Install in the reverse order | ||
| Check | |||
| 6 | Perform function check of all electrical components in repair area |
