Remove/Install Door Frame Seal Of Sliding Door - AR72.16-S-2120E
Model 447, 448
Shown On removed sliding door
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Disconnect energy chain for sliding door from respective entry | Model 447.7/8, 448.8 with code SH8 (Window airbags for driver, front passenger and rear) Model 447.7/8, 448.8 with code T56 (Electric operation of sliding door on left) Model 447.7/8, 448 with code T55 (Electric operation of sliding door on right) Model 447.8, 448.8 with code E65 (Burmester® surround sound system) Model 447.8, 448.8 with code LC1 (ambient lighting) |
AR54.18-S-0001E |

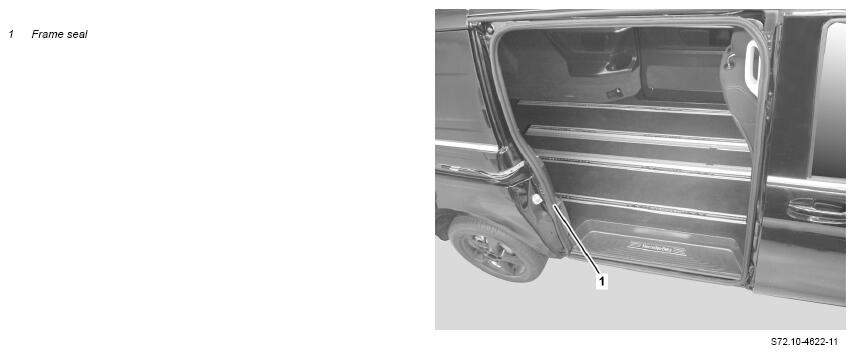

| 2 | Remove frame seal (1) from body flange | ||
| 3 | Remove lower sliding carriage from mount on sliding door | AR72.16-S-7844E | |
| 4 | Remove sealing frame (1) | ||
| 5 | Install in the reverse order. |
