Remove/Install Rear Tow Eye - Ar64.20-S-1203E

Model 447

except code Q22 (Trailer coupling, rigid coupling head)

except code Q24 (Trailer cross member NAFTA, towing capacity 5000Ibs)

except code Q50 (Trailer coupling with removable ball-type head)

Model 448

except code Q22 (Trailer coupling, rigid coupling head)

except code Q50 (Trailer coupling with removable ball-type head)

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Model 447 with Motor 780	AH00.00-Z-0300-01A
	Remove/install
1	Raise vehicle.		AR00.60-S-1000E
2	Remove right rear underfloor paneling.	Model 447 with engine 654.9 with code CU4 (Aerodynamics package)	AR61.30-S-1001E

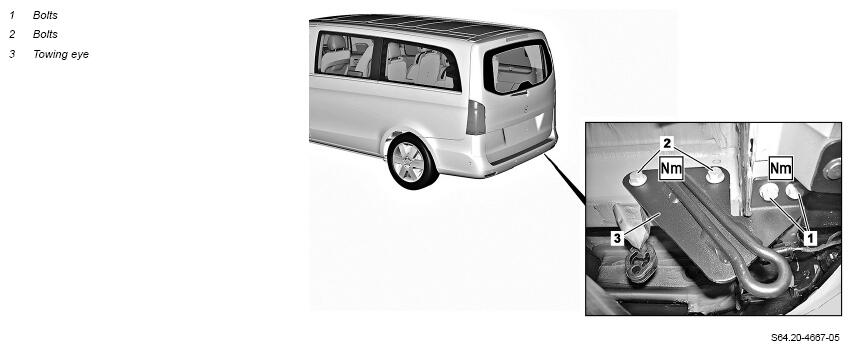

3	Remove screws (1).	Screw/bolt, towing eye at longitudinal member and crossmember	*BA31.30-Z-1001-01KOG
4	Remove screws (2).	To do this, counterhold nuts Screw/bolt, towing eye at longitudinal member and crossmember	*BA31.30-Z-1001-01KOG
5	Remove towing eye (3).
6	Install in the reverse order.
