Remove/Install Parktronic System (PTS) Control Unit - AR54.65-S-0006E
Model 447, 448
With Code EZ7 (Active Parking Assist)
Model 447
With Code EZ8 (PARKTRONIC Park Assist)
MODIFICATION NOTES
| 29.01.2019 | "Switch off ignition and store transmitter key outside of transmitter range (at least 2 m)", added. | Operation step 2 |

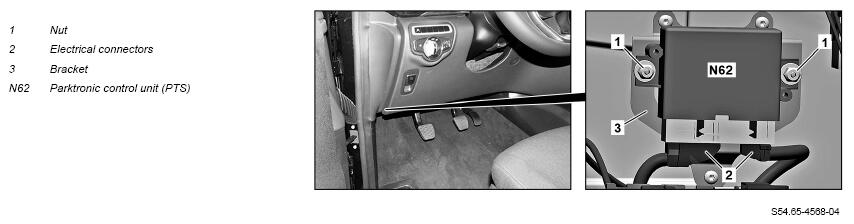

Shown on model 447 Except Code XM0 (Facelift)

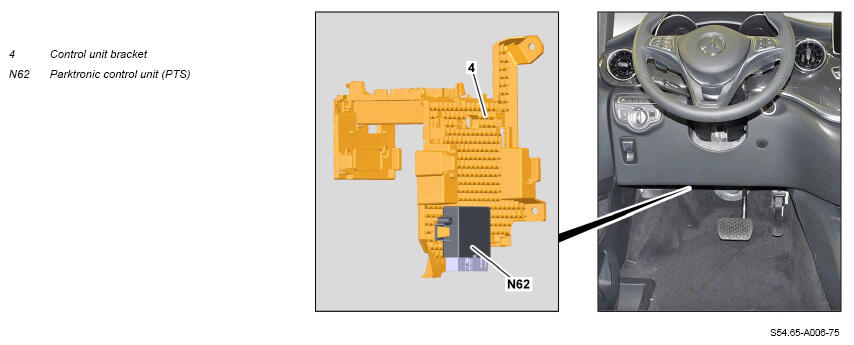

Shown on model 447 With Code XM0 (Facelift) with removed holder (4) and PARKTRONIC control unit (PTS) (N62)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||
| 1 | Connect vehicle diagnosis system and commission PARKTRONIC control unit (PTS) (N62). | If PARKTRONIC control unit (PTS) (N62) is replaced. | |
| AD00.00-S-2000-04E | |||
| 2 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 3 | Remove cover below instrument panel on driver's side. | Model 447.6/7 with code LC7 (Front footwell illumination), model 447.8, 448 | AR68.10-S-1500E |
| 4.1 | Unscrew nuts (1) and detach PARKTRONIC control unit (PTS) (N62) from holder (3). | Model 447 except code XM0 (Facelift), model 448 | |
| 4.2 | Unclip PARKTRONIC control unit (PTS) (N62) from control units holder (4). | Model 447 with code XM0 (Facelift) | |
| 5.1 | Disconnect electrical connectors (2) and remove PARKTRONIC control unit (PTS) (N62). | Model 447 except code XM0 (Facelift), model 448 | |
| 5.2 | Disconnect electrical connectors from PARKTRONIC control unit (PTS) (N62) and remove PARKTRONIC control unit (PTS) (N62). | Model 447 with code XM0 (Facelift) | |
| 6 | Install in the reverse order | ||
| Check | |||
| 7 | Perform function check of parking assistance systems. |
