Remove/Install Ground Line Of Battery - AR54.10-S-0017E
Model 447, 448
Shown on model 447.7 Except Code S23 (Front passenger seat, two-seater)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||

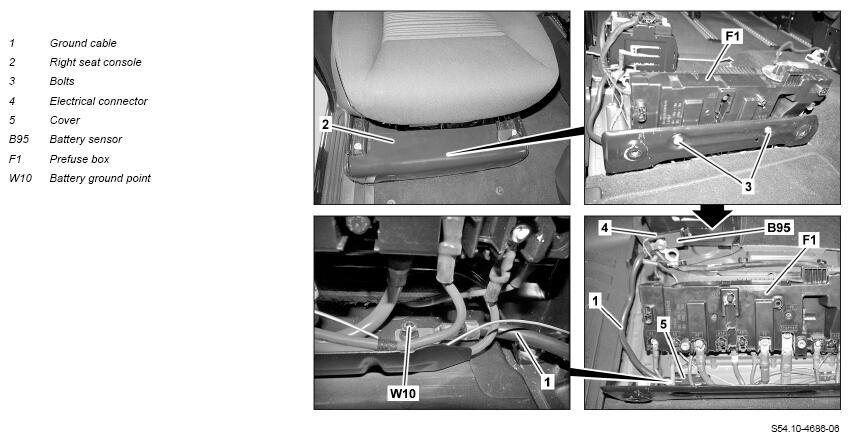

| 1 | Remove right seat console (2) | AR91.10-S-3000E | |
| 2 | Remove on-board electrical system battery | AR54.10-S-0005E | |
| 3 | Remove bolts (3) | ||
| 4 | Disconnect electrical connector (4) from battery sensor (B95) | ||
| 5 | Unclip cover (5) | ||
| 6 | Fold pre-fuse box (F1) far enough backwards to gain easy access to battery ground point (W10) | ||
| 7 | Unscrew nut from battery ground point (W10) and remove ground line (1) | *BA54.10-Z-1006-01KOF | |
| 8 | Install in the reverse order |
BATTERY
| Number | Designation | Model 447, 448 | |
|---|---|---|---|
| BA54.10-Z-1006-01KOF | Nut, ground line to body | Nm | 16 |
