Remove/Install Backup Camera - AR54.65-S-0030EE
Model 447.6/7
With Code EZ5 (Active Parking Assist with reversing camera)
With Code W50 (Rear-end door, double-wing, 180 degrees without window)
Except Code W65 (Tailgate)
Model 447.6/7
With Code EZ5 (Active Parking Assist with reversing camera)
With Code W54 (2-wing rear-end door, 270 degrees)
Except Code W65 (Tailgate)
Model 447.6/7
With Code EZ6 (Parking package with 360-degree camera)
With Code W50 (Rear-end door, double-wing, 180 degrees without window)
Except Code W65 (Tailgate)
Model 447.6/7
With Code EZ6 (Parking package with 360-degree camera)
With Code W54 (2-wing rear-end door, 270 degrees)
Except Code W65 (Tailgate)
Model 447.6/7
With Code FR8 (Rear view camera)
With Code W50 (Rear-end door, double-wing, 180 degrees without window)
Except Code W65 (Tailgate)
Model 447.6/7
With Code FR8 (Rear view camera)
With Code W54 (2-wing rear-end door, 270 degrees)
Except Code W65 (Tailgate)
Model 447.6/7
With Code JB6 (Parking package with 360-degree camera)
With Code W50 (Rear-end door, double-wing, 180 degrees without window)
Except Code W65 (Tailgate)
Model 447.6/7
With Code JB6 (Parking package with 360-degree camera)
With Code W54 (2-wing rear-end door, 270 degrees)
Except Code W65 (Tailgate)
Model 447.6/7
With Code JB7 (Parking Package with reversing camera)
With Code W50 (Rear-end door, double-wing, 180 degrees without window)
Except Code W65 (Tailgate)
Model 447.6/7
With Code JB7 (Parking Package with reversing camera)
With Code W54 (2-wing rear-end door, 270 degrees)
Except Code W65 (Tailgate)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 447.6/7 with Motor 780 | AH00.00-Z-0300-01A |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||

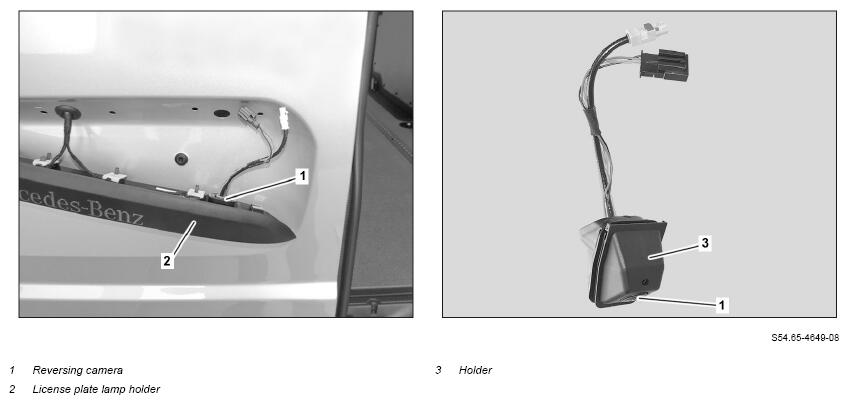

| 2 | Release license plate lamp holder (2) and detach far enough until reversing camera (1) can be removed. | AR72.20-S-1010E | |
| 3 | Unclip reversing camera (1) at license plate lamp holder (2) and remove. | ||
| 4 | Remove holder (3) from reversing camera (1). | If the holder (3) or the reversing camera (1) is replaced. | |
| 5 | Install in the reverse order. | ||
| 6 | Connect diagnostic system. | ||
| AD00.00-S-2000-04E | |||
| 7.1 | Calibrate reversing camera (1) using diagnostic system. | Model 447.6/7 with code EZ5 (Active Parking Assist with reversing camera) or with code EZ6 (Parking Package with 360° camera) or with code JB6 (Parking Package with 360° camera) or with code JB7 (Parking Package with reversing camera), Model 447.6/7 with code FR8 (Reversing camera) except code XM0 (Facelift) | |
| 7.2 | Calibrate reversing camera (1) using diagnostic system and calibration device. | Model 447.6/7 with code FR8 (Reversing camera) with code XM0 (Facelift) | AR54.65-S-0030-01EA |
| Fig 1 | |||
| 8 | Disconnect diagnostic system. |
