Remove/Install And Replace Diagnostic Socket - AR54.22-S-9999E

Model 447, 448

Shown on model 447.### 1#

Courtesy of MERCEDES-BENZ USA

Shown on model 447.### 2#

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install
1	Disconnect battery ground line		AR54.10-S-0003E
2	Remove cover under instrument panel on driver side	Model 447.6/7 with code LC7 (Illumination for front footwell) Model 447.8, 448	AR68.10-S-1500E

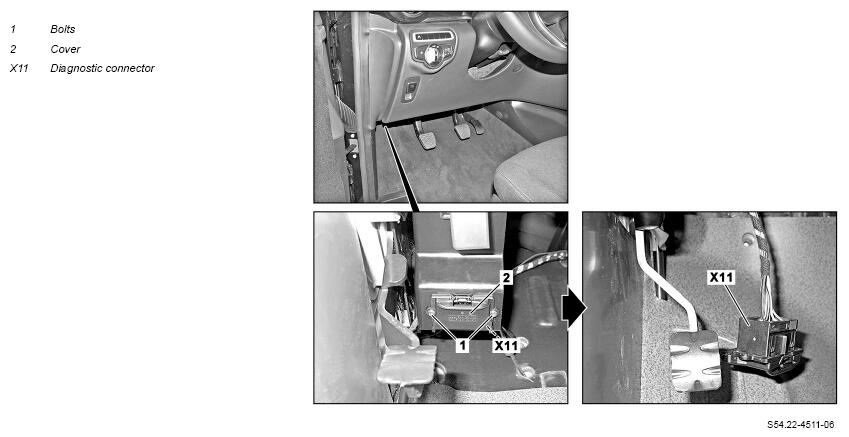

3	Remove bolts (1)
4	Open cover (2)

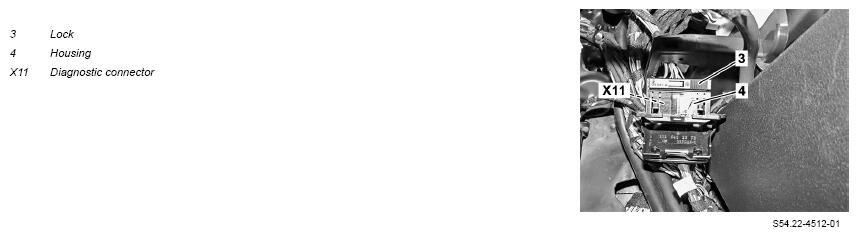

5	Release lock (3)	Model 447.### 2#
6	Remove housing (4)	Model 447.### 2#
7	Route diagnostic connector (X11) through retaining frame	Model 447.### 2#
8	Remove electrical lines from diagnostic connector (X11)	Observe assignment of slots in diagnostic connector (X11).	AR00.19-P-0120-06A
		Wiring harness repair kit, basic	Fig 4
		New passenger car wiring harness repair kit	Fig 2
		Blade holder with clamping pliers	Fig 3
		MT 3_blade	Fig 1
9	Install in the reverse order

Fig 1: Identifying MT 3_Blade (220 589 01 99 54)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA
