Remove/Install Front Axle Shafts - AR33.30-P-0620MSC

Model 167 with engine 176, 177, 256.9, 274

Model 167 with engine 264

with code M005 (Vehicles with 4 MATIC/all-wheel drive)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Remove front wheel and tire assemblies.		AR40.10-P-1102ME
2	Remove wheel hub cover.	Removal and installation tool	Fig 1
3	Remove screws of front axle shafts (10).	The aid of a helper is required to remove the screws.
		Screw/bolt, front axle shaft to wheel hub	*BA33.30-P-1001-02J
4	Loosen front axle shaft (10) from wheel hub.	Only loosen front axle shaft (10). Screwing in the extraction tool completely will damage the front axle shaft (10).
		Extraction and insertion tool	Fig 2
5	Remove suspension strut from lower control arm.	Model 167 with engine 176, 177, 256.9, 274 except code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 490 (Electrohydraulic suspension) Model 167 with engine 176, 177, 256.9, 274 with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 490 (Electrohydraulic suspension) Model 167 with engine 264 with code 489 (AIRMATIC Dual Control/semi-active air suspension) with code M005 (Vehicles with 4 MATIC/all-wheel drive) except code 490 (Electrohydraulic suspension) Model 167 with engine 264 with code M005 (Vehicles with 4 MATIC/all-wheel drive) except code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 490 (Electrohydraulic suspension)	AR32.25-P-1017ME
		Model 167 with engine 176, 177, 256.9 with code 489 (AIRMATIC Dual Control/semi-active air suspension) with code 490 (Electrohydraulic suspension) Model 167 with engine 264 with code 489 (AIRMATIC Dual Control/semi-active air suspension) with code 490 (Electrohydraulic suspension) with code M005 (Vehicles with 4 MATIC/all-wheel drive)	AR32.25-P-1017MEH
6	Remove electrical wiring harnesses from steering knuckle.
7	Remove steering knuckle from upper transverse control arm and swivel out of working area.		AR33.20-P-0500ME
		Do not crush or kink or subject lines to tension This leads to damage to the lines and impairs their function.
8	Remove front axle shaft (10) from wheel hub.

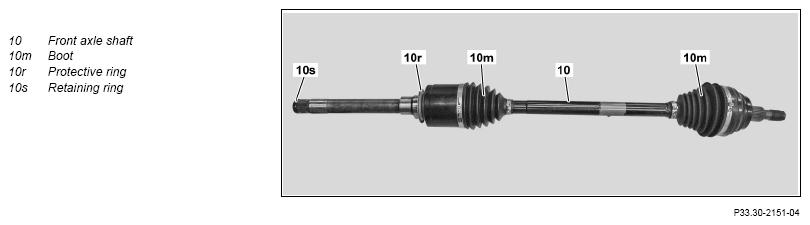

9	Pry front axle shaft (10) out of front axle differential and remove.	Aid of helper required. Do not damage boots (10m) and protective ring (10r) of front axle shaft (10) or radial shaft sealing ring in front axle differential. Replace retaining ring (10s).
	Check
10	Check radial shaft sealing ring in front axle differential for damage.	If damage is found, ↓ replace radial shaft sealing ring.	AR33.30-P-7140MSC
11	Install in the reverse order.
12	Check front axle differential for leaktightness and proper operation.

Fig 1: Identifying Removal And Installation Tool (116 589 22 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Extraction And Insertion Tool (210 589 03 43 00)

Courtesy of MERCEDES-BENZ USA
