Remove/Install Rear Axle Spring - AR32.20-P-0232FRX

Model 290

except code 489 (AIR BODY CONTROL)

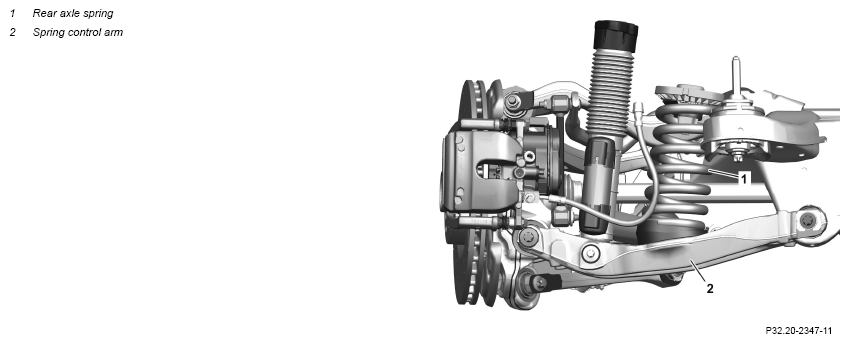

Fig 1: Rear Axle Spring Components Location - Model 290 Except Code 489

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by pinching or crushing when working on springs or spring bodies that are under tension	Use only approved tensioning devices; additionally screen off hazardous area if necessary. Check special tools for damage and proper operation (visual inspection). Wear protective gloves.	AS00.00-Z-0001-01A
Topical note	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove
1	Remove rear wheel.		AR40.10-P-1102A
2	Remove shock absorber from spring link (2).		AR32.25-P-0110FRX
3	Tension rear axle spring (1).		AR32.20-P-0202-06FRX
		Clamping plates	Fig 2
		Tensioning device	Fig 3
4	Release spring seat (5) and remove.
5	Remove rear axle spring (1) from spring link (2).	Pay attention to installation position.
6	Mark installation position of rear axle spring (1) relative to upper clamping plate and lower clamping plate using suitable adhesive strips.	Do not use a touch-up paint pen because the rear axle spring (1) is color-coded.
7	Relieve rear axle spring (1).
	Check
8	Check rear axle spring (1) for paint damage.	When reinstalling rear axle spring (1). In the event of a problem, ↓ Repair paint damage using a black touch-up paint pen.

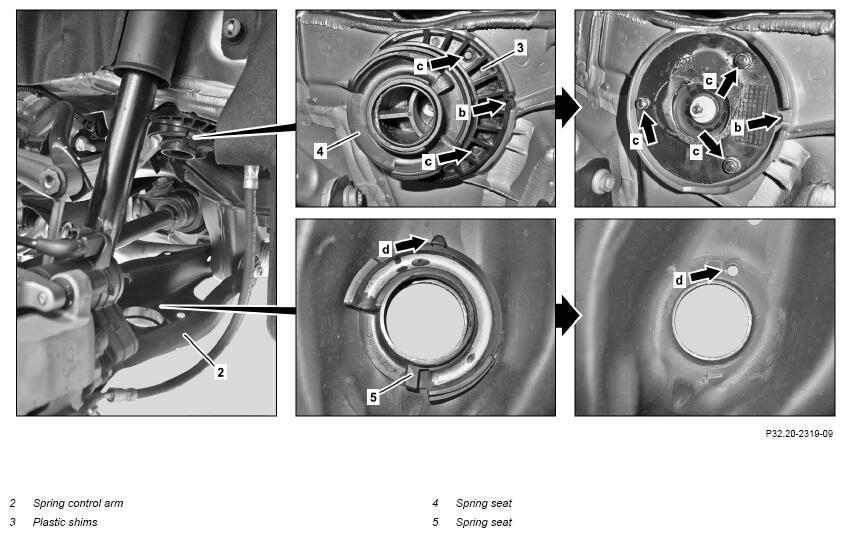

9	Check plastic shims (3) with spring seat (4) and spring seat (5) for damage.	: Make sure that plastic shims (3) (arrows b, c) and spring seat (5) (arrows d) are correctly seated. When replacing rear axle spring (1), the spring seat (5) must be replaced. The spring seat (4) must be replaced with a spring seat (4) with a notch. In the event of a problem, ↓ Replace plastic shims (3) with spring seat (4) or spring seat (5).
	Install
10	Transfer markings to new rear axle spring (1) using previously-applied adhesive strips.	When replacing rear axle spring (1).
11	Tension rear axle spring (1).		AR32.20-P-0202-06FRX
		Tensioning device	Fig 3
		Clamping plates	Fig 2
12	Position rear axle spring (1) in spring link (2).
13	Attach spring seat (5) to spring link (2).	Helper required.

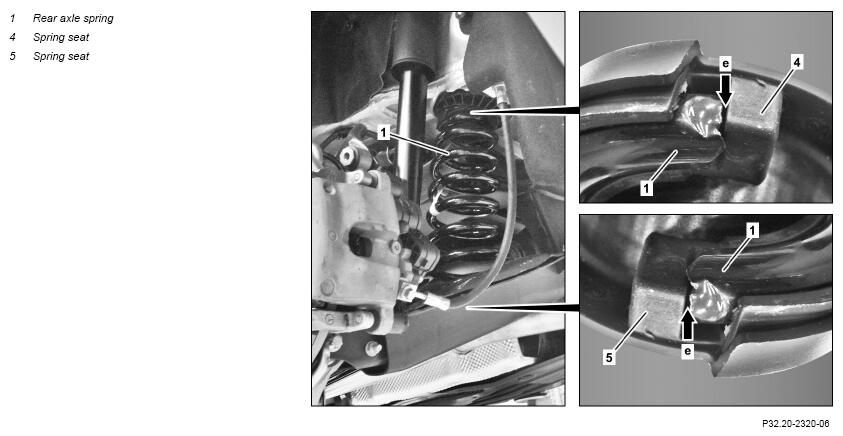

14	Relieve rear axle spring (1).	Ensure correct seating of spring seat (4) and spring seat (5) (arrow e) relative to rear axle spring (1).
15	Attach shock absorber to spring link (2).		AR32.25-P-0110FRX
16	Attach rear wheel.		AR40.10-P-1102A
	Check
17	Check and correct headlamp adjustment.	When replacing components.
			AP82.10-P-8260O

Fig 2: Identifying Clamping Plates (211 589 03 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Tensioning Device (202 589 02 31 00)

Courtesy of MERCEDES-BENZ USA
