Remove/Install Center Rear Folding Seat Backrest - AR91.12-P-1723FRX
Model 290
with code 224 (Individual rear seats) with code 287 (Through-loading feature)
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove rear right folding seat backrest. | AR91.12-P-1722FR | |
| 2 | Remove center console in rear passenger compartment. | AR68.20-P-2021FRX | |

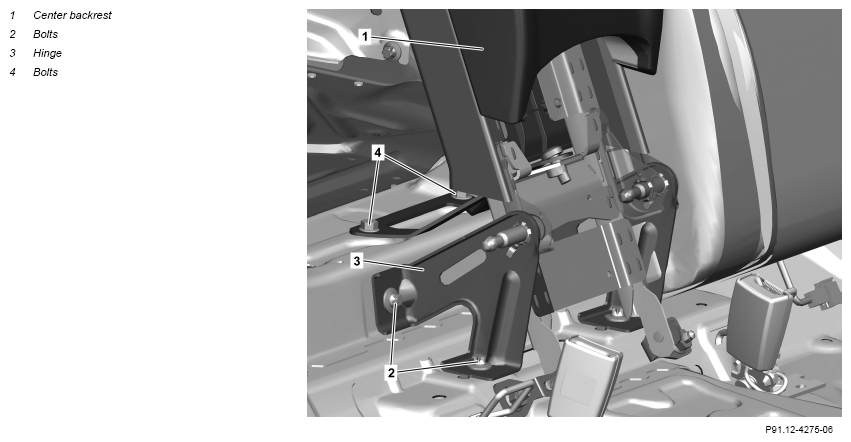

| 3 | Remove screws (2) from pivot bearing (3). | *BA91.12-P-1004-03M | |
| 4 | Guide pivot bearing (3) out of crossbar and out of center seat backrest (1) at the same time. | Do not tilt the pivot bearing (3). Otherwise, the spacer ring in the pivot bearing (3) may be damaged. |
|
| 5 | Unscrew bolts (4). | *BA91.12-P-1011-03M | |
| 6 | Pull center seat backrest (1) off left seat backrest and remove. | Do not tilt center seat backrest (1). Otherwise, the spacer ring in the center seat backrest (1) may be damaged. |
|
| 7 | Install in the reverse order |
REAR SEATS
| Number | Designation | Model 290 | |
|---|---|---|---|
| BA91.12-P-1004-03M | Bolt, center pivot bearing to body | Nm | 40 |
REAR SEATS
| Number | Designation | Model 290 | |
|---|---|---|---|
| BA91.12-P-1011-03M | Screw, center seat backrest mounting support to body | Nm | 40 |
