Remove/Install Right Rear Folding Seat Backrest - AR91.12-P-1722FR
Model 257, 290
with code 287 (Through-loading feature)

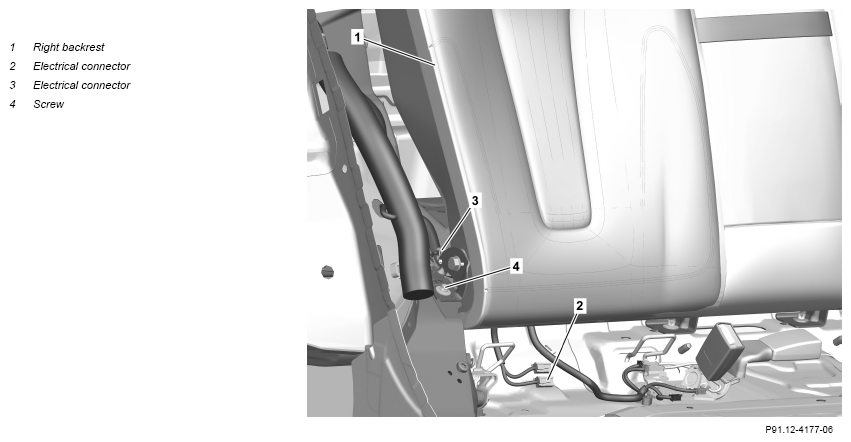

Shown on model 257 with code 872 (Seat heating in rear passenger compartment)
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove right seat side bolster. | Model 290 with code 287 (Through-loading feature) |
AR91.12-P-1711FRX |
| Model 257 with code 287 (Through-loading feature) |
AR91.12-P-1711FR | ||
| 2 | Move right front seat to forwardmost position. | ||
| 3 | Disconnect electrical connection (2). | Model 257, 290 with code 287 (Through-loading feature) with code 872 (Left and right rear seat heating) |
|
| 4 | Disconnect electrical connector (3) and unclip associated electrical line. | ||
| 5 | Release right seat backrest (1). | ||
| 6 | Unscrew bolts (4). | *BA91.12-P-1003-03M | |
| 7 | Pull right seat backrest (1) off center seat backrest and remove. | Do not tilt right backrest (1). Otherwise, the spacer ring in the right seat backrest (1) may be damaged. |
|
| 8 | Install in the reverse order |
REAR SEATS
| Number | Designation | Model 257 | Model 290 | |
|---|---|---|---|---|
| BA91.12-P-1003-03M | Bolt, outer pivot bearing to body | Nm | 40 | 40 |
