Remove/Install Center Console In Rear - AR68.20-P-2021FRX
Model 290 with code 224 (Individual rear seats)
MODIFICATION NOTES
| 29.04.2021 | New operation steps added. | Operation step 1 and 2 |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

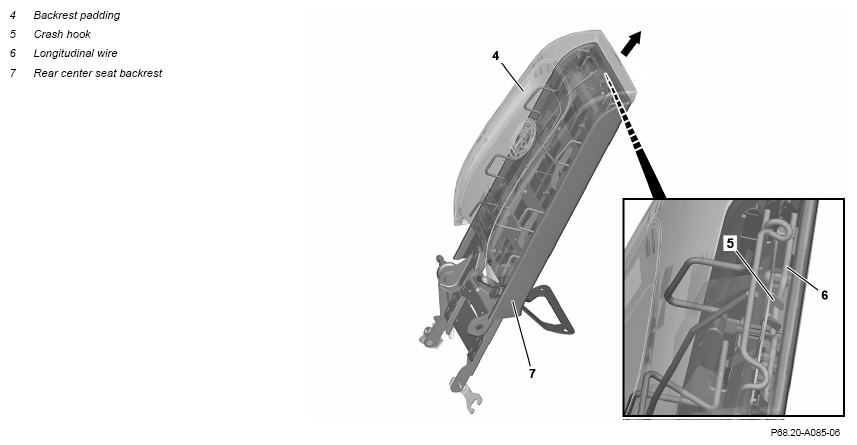

| 1 | Pull seat backrest padding (4) of the rear center seat backrest (7) upwards (arrow). | ||
| 2 | Pry out longitudinal wire (6) with a suitable tool while applying pressure from below from the crash hook (5). | ||
| 3 | Remove rear mobile phone cradle control unit. | Model 290 with code 224 (Individual rear seats) with code 287 (Through-loading feature) with code 898 (Wireless telephone charging in rear passenger compartment) |
|
| AR82.70-P-0012FRY | |||
| 4 | Remove the rear seat cushions. | Model 290 with code 224 (Individual rear seats) except code 568 (3-seater rear bench seat) |
AR91.12-P-1021FRX |
| 5 | Open armrest cover and remove insert. | ||

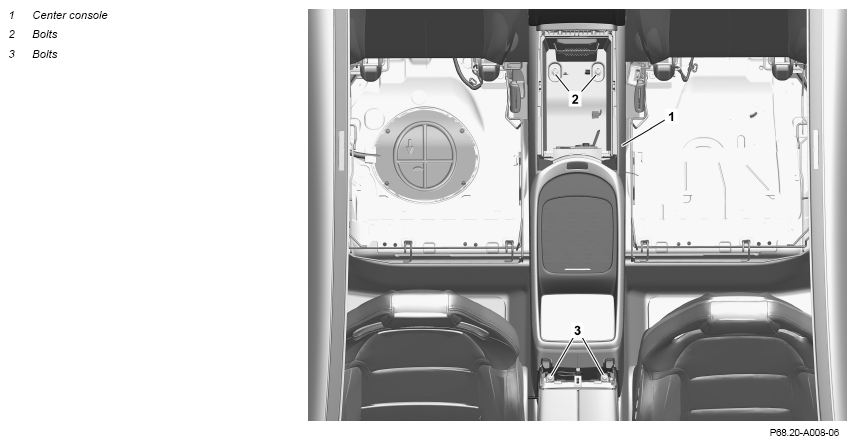

| 6 | Remove screws (2). | ||
| 7 | Remove rear cover on center console (1). | AR68.20-P-2358FRX | |
| 8 | Remove screws (3). | ||
| 9 | Disconnect electric lines at center console (1). | ||
| 10 | Remove center console (1). | ||
| 11 | Install in the reverse order |
