Remove/Install Starter - AR15.30-P-7100MNI
Engine 177.9 in model 290
MODIFICATION NOTES
| 30.05.2023 | Nut, connection for circuit designation 30 | Engine 177 | BA15.30-P-1004-01T |
| 30.05.2023 | Nut, connection for terminal designation 30 | Motor 177 | BA15.30-P-1004-01T |
| 30.05.2023 | Bolt, starter to crankcase and transmission | BA15.30-P-1001-01T |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Remove/install | |||
| 1 | Deactivate easy entry and exit feature for steering wheel. | ||
| 2 | Turn wheel and tire assembly of front axle to place with holding s device | Do not turn steering wheel with steering coupling removed. Otherwise the clock spring contact will be destroyed. |
Fig 3 |
| 3 | Disconnect the ground line for the on-board electrical system battery (G1). | AR54.10-P-0003FR | |
| 4 | Remove steering coupling from steering shaft and place steering coupling to one side. | AR46.10-P-8000FR | |
| 5 | Release left catalytic converter. | AR49.20-P-0101MNI | |

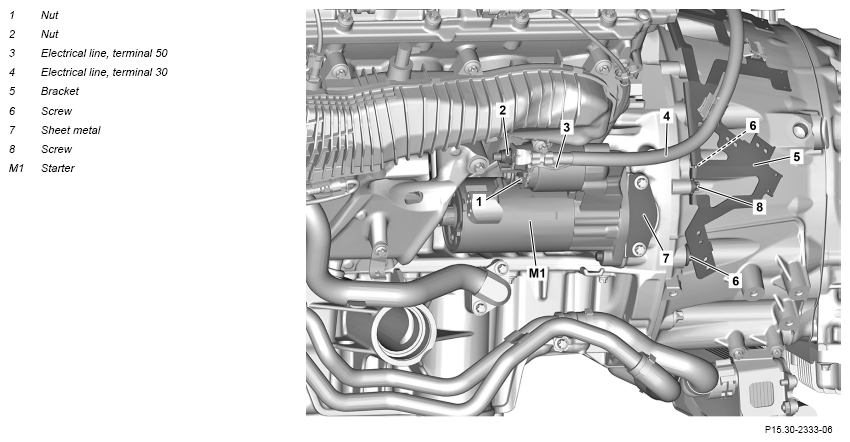

| 6 | Remove contact protection of circuit 30 electric line (4). | ||
| 7 | Unclip circuit 30 electric line (4) from bracket (5). | ||
| 8 | Unbolt nut (2). | *BA15.30-P-1004-01T | |
| 9 | Unscrew nut (1). | *BA15.30-P-1003-01T | |
| 10 | Disconnect circuit 30 electric line (4) from starter (M1). | ||
| 11 | Disconnect circuit 50 electric line (3) from starter (M1). | ||
| 12 | Remove sheet metal (7). | *BA00.10-P-1002-04A | |
| 13 | Unscrew screw (8). | *BA00.10-P-1002-04A | |
| 14 | Lift bracket (5) and remove screws (6). | *BA15.30-P-1001-01T | |
| 15 | Remove starter (M1) downward. | ||
| 16 | Check pinion of the starter (M1) for wear and damage. | When reusing the starter (M1). If wear or damage occurs ↓ Replace starter (M1). |
|
| 17 | Remove front lower engine compartment lining. | If the starter drive pinion is damaged. | AR61.20-P-1105FRX |
| 18 | Turn engine at center bolt of the crankshaft in the direction of engine rotation and check starter ring gear on the flywheel for wear and damage. | If the starter drive pinion is damaged. If wear or damage occurs ↓ Replace flywheel. |
Fig 2 |
| AR03.30-P-8002MNI | |||
| 19 | Install in the reverse order. | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 20 | Carry out engine test run and check starter (M1) for proper operation. |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6x1 | Nm | 9 | 13 |
STARTER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA15.30-P-1001-01T | Screw/nut, starter to crankcase and transmission | Nm | 39 |
STARTER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA15.30-P-1003-01T | Nut, connection for terminal designation 50 | Nm | 9 |
STARTER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA15.30-P-1004-01T | Nut, connection for terminal designation 30 | Nm | 17 |
