Remove/Install Oil Circuit Feed Line Of Turbochargers - AR09.40-P-6040MNI
Engine 177 in model 290
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove ignition coil for cylinders 1+2 (T4). | AR15.12-P-2009MNI | |
| 2 | Remove heat shield of left and right exhaust gas turbocharger (2, 3). | AR09.40-P-6044MNI | |
| 3 | Remove heat shield from right exhaust gas turbocharger (3). | AR09.40-P-6027-00MNI | |
| *BA09.40-P-1007-01ZA | |||
| *BA09.40-P-1008-01ZA | |||
| 4 | Place heat shield at feed line (1) to one side. | ||
| 5 | Clean area surrounding the feed line (1). | Assembly cleaner | *BR00.45-Z-1028-04A |
| 6 | Remove bolts (5). | *BA09.40-P-1002-01ZA | |
| 7 | Remove feed line (1) and seal openings with suitable stop plugs. | ||

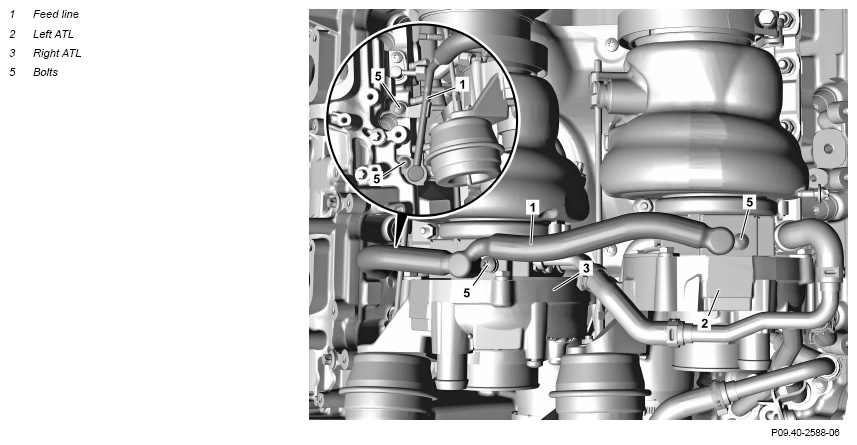

| Fig 1 | |||
| 8 | Install in the reverse order. | ||
| 9 | Check and correct engine oil level. | ||
| AP18.00-P-1812DKI | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 10 | Perform engine test run and check engine for leak tightness. | ||
| 11 | Install upper engine cover. |
TURBOCHARGER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.40-P-1002-01ZA | Bolt, oil pressure line to turbocharger/cylinder head | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.40-P-1007-01ZA | Bolt, side heat shield to cylinder head cover | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.40-P-1008-01ZA | Bolt, rear heat shield to bracket | Nm | 9 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
