Remove/Install Ignition Coils Of Right Cylinder Bank - AR15.12-P-2009MNI

Engine 177 in model 290

MODIFICATION NOTES

02.02.2021	Remove holder (2).	Operation step 2.
02.02.2021	Release and disconnect electrical connections (1).	Operation step 6.

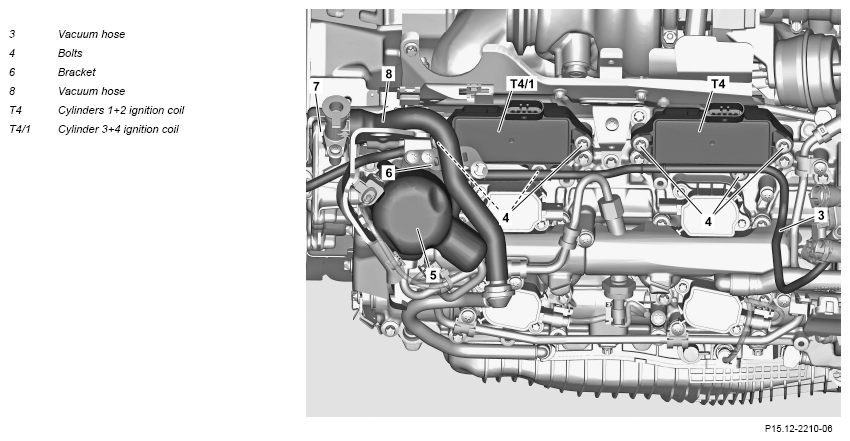

Shown on engine 177.9

Fig 1: Ignition Coils Of Right Cylinder Bank Components Location - Engine 177.9 In Model 290

Courtesy of MERCEDES-BENZ USA

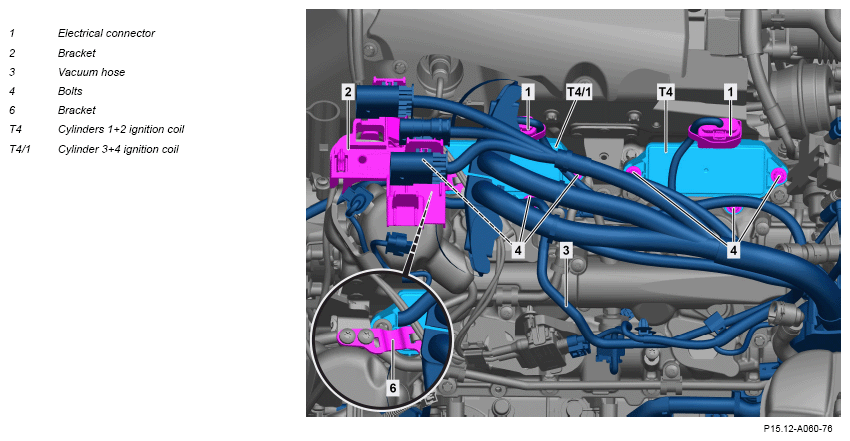

Shown on engine 177.8

Courtesy of MERCEDES-BENZ USA

	Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.	AS00.00-Z-0035-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on avoiding damage to ignition system		AH15.10-P-0002-01V
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove ME-SFI [ME] control unit bracket.	Engine 177.8 in model 290	AR07.08-P-7016LSE
		Engine 177.9 in model 290	AR07.08-P-7016MNI
2	Remove holder (2).	Engine 177.8 in model 290
3	Remove screws of holder (6).	M6x1	*BA00.10-P-1002-04A
4	Place vacuum hose (8) to one side.	Engine 177.9 in model 290
5	Unclip vacuum hose (3) and place to one side.
6	Release and disconnect electrical connections (1).	Engine 177.8 in model 290
7	Remove screws (4).	Bolt, ignition coil to cylinder head cover	*BA15.10-P-1001-04D
8	Withdraw ignition coil for cylinders 1+2 (T4) upward and remove.	Ignition coil cylinders 1+2 (T4) and the spark plug connect form a unit and can therefore only be removed and replaced together.
9	Withdraw ignition coil for cylinders 3+4 (T4/1) upwards and remove.	Ignition coil cylinders 3+4 (T4/1) and the spark plug connector from a unit and can therefore only be removed and replaced together.
10	Check ignition coil for cylinders 1+2 (T4) and ignition coil for cylinders 3+4 (T4/1) for damage.	If damage is present: ↓
		Replace ignition coil for cylinders 1 + 2 (T4) and/or ignition coil for cylinders 3 + 4 (T4/1).
11	Approx. Apply 1 g of spark plug connector grease to spark plug connectors.	Apply spark plug connector grease to reduce pull-off and attachment forces Spark plug connectors will otherwise be damaged during next removal. Spark plug connector grease 35 g	*BR00.45-Z-1102-06A
12	Install in the reverse order.
13	Read out and delete fault memory.
			AD00.00-P-2000-06FR
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
14	Perform an engine test run and check the engine for proper function.

METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143

Number	Designation		8.8	10.9
BA00.10-P-1002-04A	M6x1	Nm	9	13

IGNITION COIL

Number	Designation		Engine 177
BA15.10-P-1001-04D	Bolt, ignition coil to cylinder head cover	Nm	9

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1102-06A	Spark plug connector grease 35 g	A 002 989 08 08
