Replace Pilot Bushing - AR41.10-P-0250MNI
Model 290
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Remove | |||
| 1 | Remove propeller shaft (1). | AR41.10-P-0050MNI | |
| 2 | Remove rear flex disk (12). | AR41.10-P-0040-01MNI | |
| Drift for releasing the fitting sleeves in the flexible couplings | WF58.50-P-4110-01A | ||

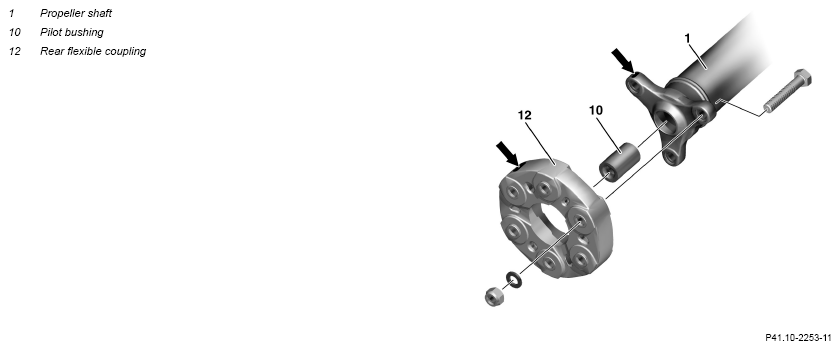

| Fig 1 | |||
| 3 | Remove pilot bushing (10). | AR41.10-P-0250-02MNI | |
| Install | |||
| 4 | Pack cavity of rear pilot bushing (10) with grease. | ||
| Multipurpose grease (NLGI Class 2) | BB00.40-P-0267-00A | ||
| 5 | Press in pilot bushing (10). | AR41.10-P-0250-03MNI | |
| Press-in dimension "a" from face end of pilot bushing to joint flange | *BE41.10-P-1001-04S | ||
| 6 | Install rear flex disk (12). | AR41.10-P-0040-01MNI | |
| *BA41.10-P-1001-01M | |||
| Fig 1 | |||
| 7 | Install propeller shaft (1). | AR41.10-P-0050MNI |
CHECK VALUES FOR PILOT BUSHING ON PROPELLER SHAFT
| Number | Designation | Model 290 (except 290.658) | Model 290.658 | ||
|---|---|---|---|---|---|
| BE41.10-P-1001-04S | Press-in dimension "a" from face end of pilot bushing to joint flange | Front propeller shaft | mm | - | 28, 80 |
| Rear propeller shaft | mm | 26, 20 | 28, 80 | ||
PROPELLER SHAFT
| Number | Designation | Model 290 | |||
|---|---|---|---|---|---|
| BA41.10-P-1001-01M | Flexible coupling to transmission/rear axle differential or propeller shaft | Direct threaded connection | Stage 1 | Nm | 60 |
| Stage 2 | ∠° | 90 | |||
