Remove/Install Front Axle Differential Propeller Shaft - AR41.10-P-0070MNI

Model 290 with engine 177.8 with transmission 725.163

Model 290 with engine 177.9 with transmission 725.0

with code M005 (Vehicles with 4MATIC/all-wheel drive)

Shown on vehicle with VAG 175

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.	AS00.00-Z-0035-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment		AH00.00-Z-0300-01A
Notice	Notes on battery		AH54.10-P-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Remove
1	Put transmission into neutral position.
2	Release parking brake.
3	Perform power disconnect of high-voltage onboard electrical system.	Model 290.679 with engine 177.8 with transmission 725.163 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR47.70-P-1000FRH
4	Release right catalytic converter from holders and clamps.		AR49.20-P-0102MNI
5	Remove lower holders from right catalytic converter.
6	Remove heat shield (2).
7	Remove bracket of heat shield (2).
8	Remove right holder of lower rear engine compartment lining.
9	Remove heat shield from transmission.		AR27.40-P-0700-01LF

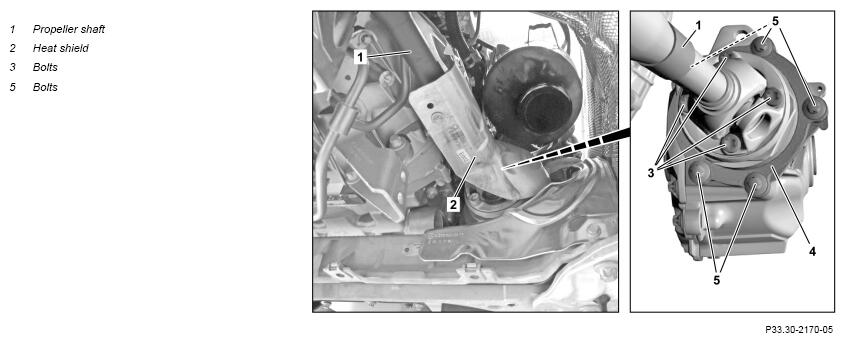

10	Operate service brake and remove bolts (3).	Do not counterhold the propeller shaft (1) at the universal joint. The needle roller bearings and seals of the propeller shaft (1) will otherwise be damaged. Aid of helper required.
11	Remove transfer case (9).		AR28.10-P-0100MNI
12	Detach propeller shaft (1) from front axle differential and remove downward.
13	Check seal bellows (6) for damage.	If damage is found, ↓ replace sealing bellows (6).	AR41.10-P-0070-01A
		Long-life grease (NLGI grade 2)	BB00.40-P-0266-02A
	Install

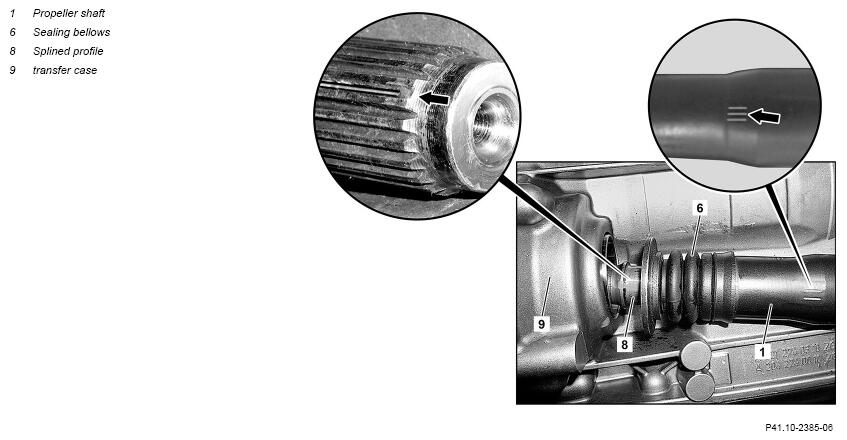

14	Grease splined profile (8).	Klueber Microlube GNY 202	*BR00.45-Z-1071-06A
15	Attach propeller shaft (1) to splined profile (8) of transfer case (9).	The marking (arrow) on the output flange gearing must line up exactly with the marking (arrow) on the drive shaft (1).
16	Install transfer case (9).		AR28.10-P-0100MNI
		Klueber Microlube GNY 202	*BR00.45-Z-1071-06A
17	Position propeller shaft (1) on front axle differential.
18	Operate service brake and screw in screws (3).	Do not counterhold the propeller shaft (1) at the universal joint. The needle roller bearings and seals of the propeller shaft (1) will otherwise be damaged.
		Replace bolts (3). Aid of helper required. Screw/bolt, propeller shaft to front axle gear	*BA33.30-P-1012-03G
19	Install heat shield on transmission.		AR27.40-P-0700-01LF
		Bolt, heat shield to oil pan	*BA27.10-P-1009-04H
20	Install right holder of lower rear engine compartment lining.
21	Install bracket of heat shield (2).	Collar bolt, holder for heat shield to transmission/holder for exhaust system	*BA33.30-P-1010-03G
22	Install heat shield (2).	Collar bolt, heat shield to holder of heat shield/retaining plate/front axle differential	*BA33.30-P-1009-03G
23	Remove lower holder from right catalytic converter.	Bolt, exhaust system bracket to transmission	*BA49.10-P-1009-02E
		Bolt, bracket for catalytic converter to catalytic converter/bracket	*BA49.10-P-1011-02E
24	Fasten right catalytic converter to holders and clamps.		AR49.20-P-0102MNI
25	Put the high-voltage on-board electrical system into operation.	Model 290.679 with engine 177.8 with transmission 725.163 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR47.70-P-1000FRH
