Remove/Install Rear Door Side Window - AR67.30-P-0006FR
Model 257, 290
Shown on model 257
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury from contusions to hands if window glass is not secured | Secure window to prevent it from falling down. | AS67.00-Z-0002-01A | |
| Remove | |||
| 1 | Remove rear door trim. | AR72.12-P-1011FR | |
| 2 | Remove mid-range speakers (H4/3, H4/4, H4/80, H4/81). | ||
| 3 | Remove outer sealing rail (3). | ||
| 4 | Remove inner sealing rail (2). | Fig 1 | |
| 5 | Affix tape (5), as shown, parallel to window guide rail. | Where side window (1) is reused. | |
| 6 | Remove grommets (4). | ||
| 7 | Manually close rotary tumbler at door lock. | Door lock can otherwise be damaged. |
|
| 8 | Unscrew screw/bolt (6). | ||
| 9 | Release screw (7). | ||
| 10 | Remove side window (1) from rear door. | ||

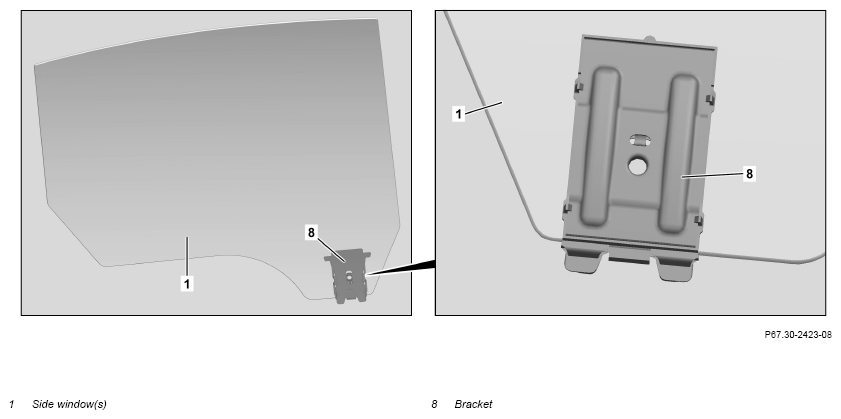

| 11 | Unclip bracket (8) at side window (1) and remove. | When replacing side window (1). | |
| Install | |||
| 12 | Attach bracket (8) to side window (1). | When replacing side window (1). | |
| 13 | Insert side window (1) into window channel and align with window guide rail. | ||
| 14 | Screw in screws (6, 7) up to end stop. | ||
| 15 | Adjust side window (1). | AR67.30-P-0016FR | |
| 16 | Install grommets (4). | ||
| 17 | Remove tape (5). | Where side window (1) is reused. | |
| 18 | Install inner sealing rail (2). | ||
| 19 | Install outer sealing rail (3). | ||
| 20 | Install mid-range speakers (H4/3, H4/4, H4/80, H4/81). | ||
| 21 | Install rear door trim. | AR72.12-P-1011FR |
