Remove/Install Rear Seat Cushion - AR91.12-P-1021FRX

Model 290

except code 568 (3-seater rear bench seat)

Courtesy of MERCEDES-BENZ USA

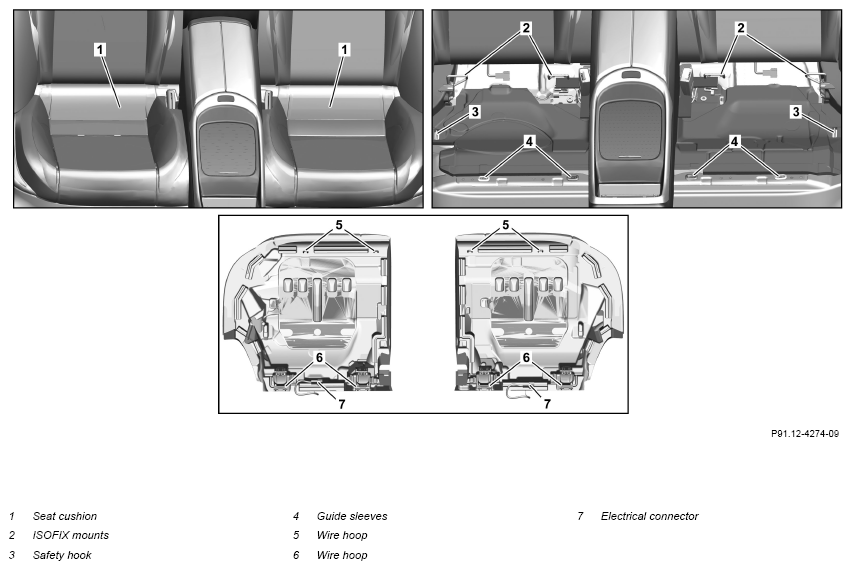

Shown with code 224 (Design individual rear seat system)

	Remove/install
1	Move driver's and front passenger seat forward.
2	Pull seat cushion (1) on wire hoops (5) upward out of pilot bushings (4).	Ensure that wire hoop (5) is seated correctly in pilot bushings (4)
3	Disconnect and unclip electrical connectors (7).	Model 290 with code 872 (Heated rear seats) except code 568 (3-seater rear bench seat)
4	Press seat cushion (1) on left towards rear and unhook upwards from safety hooks (3).	In the seat cushion (1) is a wire hoop, which is hooked onto the safety hooks (3).
		Make sure that the seat cushion (1) is seated correctly in the safety hooks (3)
5	Unhook wire hoops (6) on seat cushion (1) from ISOFIX mounts (2) and remove seat cushion (1).	Ensure that the seat belt buckle is positioned correctly.
6	Install in the reverse order
