B-Pillar Complete Replacement - Ar63.20-P-1350FRX

Model 290

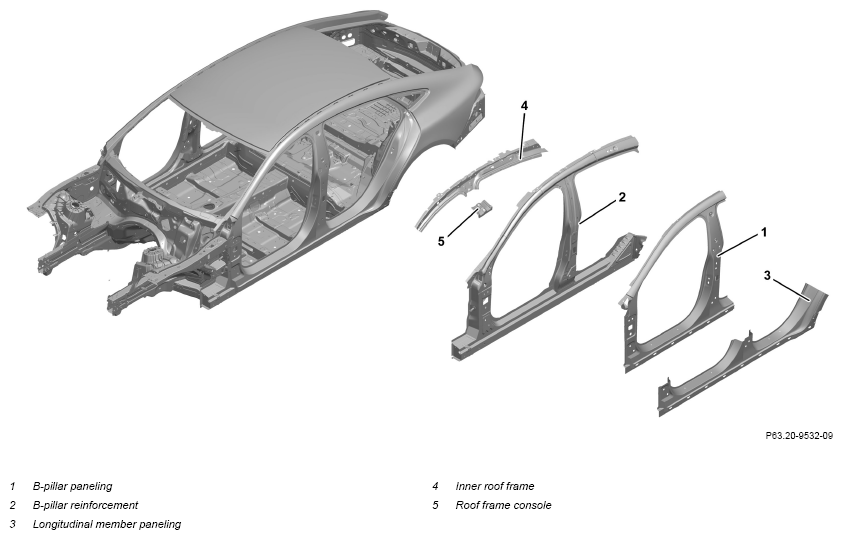

Fig 1: B Pillar And Adjacent Panel Components Locations (Model 290)

Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle on model 290 except code 414 (Sliding sunroof)

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	General information on body repair		AH60.00-P-0001-01KOA
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Pretreatment of bonding surfaces		AH60.00-P-0008-01SX
	Notes on foam-protected insulation in body		AH60.00-P-0041-01A
	General information on repair of vehicles with ultra-strength steels.		AH60.00-P-0024-01N
	General information on MB materials		AH98.00-P-9409-03A
	Remove
1	Remove detachable parts in area of repair point.
2	Cover all detachable parts remaining in vehicle with spark protection blanket.
3	Set up straightening bench with straightening bench support members and straightening set.
	000 588 50 23 00 Body straightening system		WS60.00-P-0439K
4	Place vehicle on straightening bench and fasten.
5	Remove B-pillar paneling (1) and B-pillar reinforcement (2).		AR63.20-P-1350-05FRX
		1K-zinc dust paint	*BR00.45-Z-1056-07A
	Install
	The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases	Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system.	AS00.00-Z-0007-01A
Notice	Measures for preventing damage to components when performing electric welding and soldering work		AH60.00-P-0001-02A
	General information on riveting		AH60.00-P-0003-01N
6	Prepare B-pillar paneling (1), B-pillar reinforcement (2), longitudinal member paneling (3), and the inner roof frame (4).		AR63.20-P-1350-07FRX
		1K-zinc dust paint	*BR00.45-Z-1056-07A
7.1	Install B-pillar paneling (1), B-pillar reinforcement (2), longitudinal member paneling (3), and the inner roof frame (4).	Model 290 except code 397 (Carbon roof) except code 416 (Panoramic sunroof)	AR63.20-P-1350-06FRX
	000 588 50 23 00 Body straightening system		WS60.00-P-0439K
		1K-zinc dust paint	*BR00.45-Z-1056-07A
		Seam seal 300 ml in black or white	*BR00.45-Z-1003-01A
		Parts kit for 2-component adhesive for body	*BR00.45-Z-1162-02A
		Blind rivet Y2 6.5x12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN)	*BR00.45-Z-1012-13A
		Blind rivet Y3 6.5x14.5 (clamping range 4 mm to 7 mm, draw-off strength min. 19 kN)	*BR00.45-Z-1016-13A
		Blind rivet Y1 6.4x12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN)	*BR00.45-Z-1035-13A
		Countersunk-head blind rivet Z2 6.4x15.5 (clamping range 3 mm to 5 mm, draw-off strength min. 15.5 kN)	*BR00.45-Z-1044-13A
		Countersunk-head blind rivet Z3 6.4x17.0 (clamping area 4.5 mm to 6.5 mm, draw-off strength min. 15.5 kN)	*BR00.45-Z-1055-13A
		Side portal frame	Fig 2
		If a basic body filler is used as an alternative to the restoration of surfaces with body solder, ↓ apply basic body filler.	AR60.00-P-0031-01LWG
		Basic body filler	*BR00.45-Z-1057-07A
		Parts kit for 2-component adhesive for body	*BR00.45-Z-1162-02A
7.2	Install B-pillar paneling (1), B-pillar reinforcement (2), longitudinal member paneling (3), and the inner roof frame (4).	Model 290 with code 397 (Carbon roof) Model 290 with code 416 (Panoramic sunroof)	AR63.20-P-1350-06FRY
	000 588 50 23 00 Body straightening system		WS60.00-P-0439K
		1K-zinc dust paint	*BR00.45-Z-1056-07A
		Seam seal 300 ml in black or white	*BR00.45-Z-1003-01A
		Parts kit for 2-component adhesive for body	*BR00.45-Z-1162-02A
		Blind rivet Y1 6.4x12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN)	*BR00.45-Z-1035-13A
		Side portal frame	Fig 2
		If a basic body filler is used as an alternative to the restoration of surfaces with body solder, ↓ apply basic body filler.	AR60.00-P-0031-01LWG
		Basic body filler	*BR00.45-Z-1057-07A
		Parts kit for 2-component adhesive for body	*BR00.45-Z-1162-02A
8	Release vehicle from straightening bench, lift and remove straightening bench.
9	Clean weld joints and sheet metal flange.
10	Remove spark protection blankets.
11	Clean repair area.
12	Prime repair areas using a primer filler
Notice	Notes on paintwork repairs		AH98.00-P-9408-02A
	General information on operation items and work procedures for painting	Use only primer fillers approved by manufacturer. See guidelines for paint technology in the workshop portal.	AH98.00-P-0003-01A
13	Seal seam after repair.		AR97.10-P-4000FRX
14	Paint repair areas and adjacent surfaces
Notice	Notes on paintwork repairs		AH98.00-P-9408-02A
	General information on operation items and work procedures for painting	Only use paints approved by the manufacturer. See guidelines for paint technology in the workshop portal.	AH98.00-P-0003-01A
15	Supplement cavity preservation.		AR97.20-P-1500FRX
16	Reinstall detachable parts in area of repair point.

Fig 2: Side Portal Frame (210 589 17 23 00)

Courtesy of MERCEDES-BENZ USA
