B-Pillar Install And Weld In - Ar63.20-P-1350-06FRX
Model 290 except code 397 (Carbon roof) except code 416 (Panoramic sunroof)
The following operation steps are shown on the left side of the vehicle on model 290 except code 414 (Sliding sunroof). In case of damage on the right side of the vehicle, these steps must be performed analogously.
Additional information can be found in the superordinate service document.
The safety information in the superordinate service document must be observed.
- Install B-pillar reinforcement (2)
with the side portal frame and portal straightener and fit.
Use spacers.
- Remove B-pillar reinforcement (2) and portal straightener.

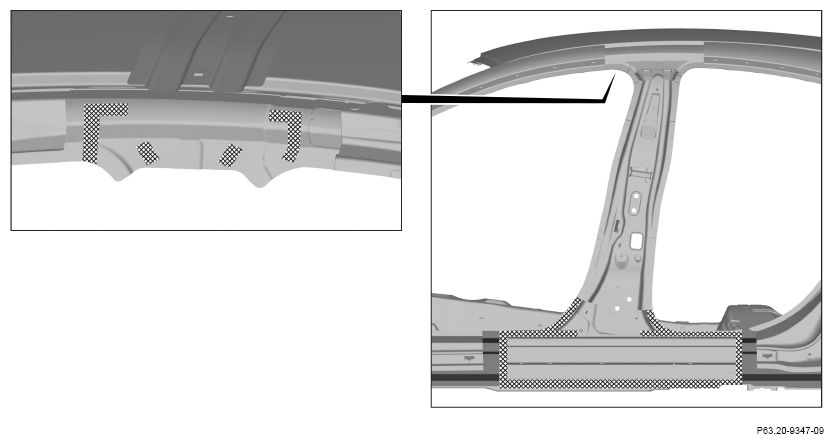

- Apply sealant to foam parts in crosshatched areas.

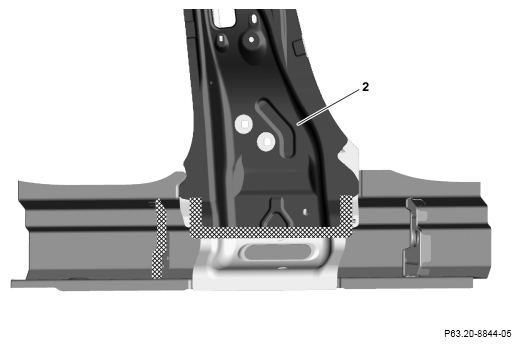

- Apply 2-component adhesive to body in crosshatched areas.
Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.
- Install B-pillar reinforcement (2) with the
side portal frame and portal straightener and fix in place.
Use spacers.

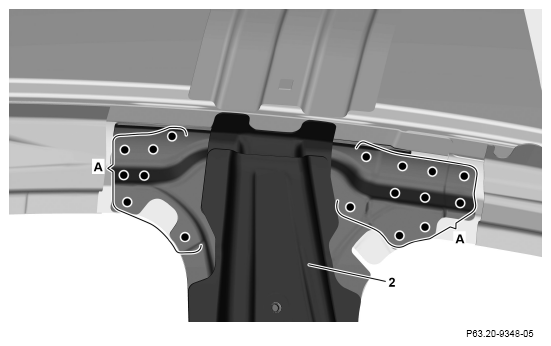

- B-pillar reinforcement (2)
(areas A).

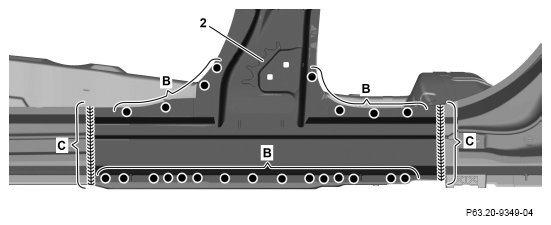

- B-pillar reinforcement (2)
(areas B).
- Remove
side portal frame and portal straightener.
- B-pillar reinforcement (2)
(areas C).
Inert gas weld in intervals and allow welding area to cool down in between. Reduces heat distortion.
- Face grind inert gas welds on B Pillar reinforcement (2) (areas C).
Grind down flat on contact surfaces on B-pillar paneling and beaded area only.
- Clean weld joints no longer accessible after installing A-pillar reinforcement and coat with zinc dust paint.
- Install inner roof frame (4), fit, and fix in place.

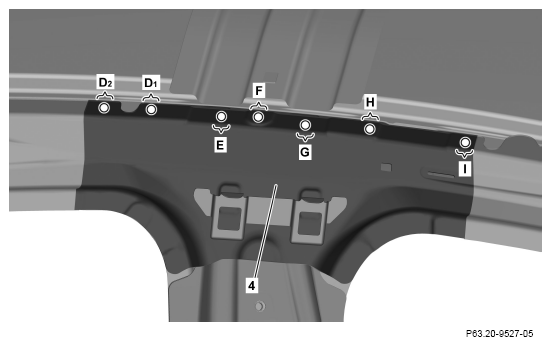

- Drill rivet holes in inner roof frame (4) from outside with ø 6.7 mm and countersink (areas D1 , I).
- Drill rivet holes in inner roof frame (4) with ø 6.7 mm (areas D2
, E, F, G, H).
Drill rivet holes in inner roof frame (4) from outside (areas D2 , F, H).
The rivet holes must be drilled offset by approx. 5 mm toward the inside in relation to the standard resistance points in the direction of the vehicle center (areas E, G).
The rivet hole must be drilled offset by approx. 20 mm relative to the series resistance point toward the rear against the direction of travel (area H).
- Remove inner roof frame (4).
- Deburr rivet holes on the inner roof frame (4) and the body on both sides.
- Remove drilling chips.
- Coat insides of riveted joints with zinc dust paint (areas D1 , D2 , E, F).

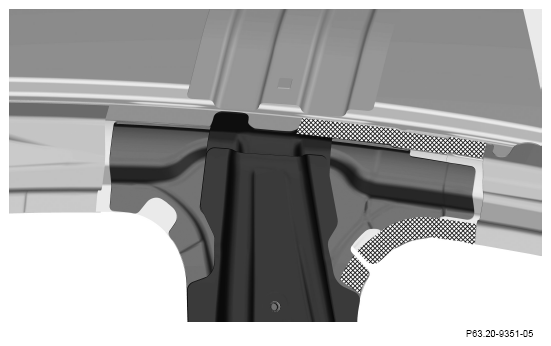

- Apply 2-component adhesive to body in crosshatched areas.
Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.
- Install inner roof frame (4) and fix in place.

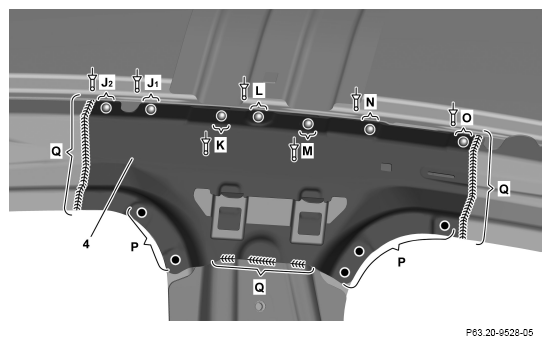

- Rivet inner roof frame (4) form outside with countersunk-head rivets ø 6.4x15.5 (areas J1 , O).
- Rivet inner roof frame (4) with rivets ø 6.5x14.5 (areas J2
, K, L, M, N).
Do not connect inner roof frame (4) with roof paneling and side wall paneling (areas K, M).
Rivet inner roof frame (4) from outside (areas J2 , L, N).
- Seal holes in roof paneling with sealant after riveting of inner roof frame (4) from outside (areas K, M).
- Inner roof frame (4)
(areas P).
- Inner roof frame (4)
(areas Q).
Inert gas weld in intervals and allow welding area to cool down in between. Reduces heat distortion.
- Face grind inert gas welds on inner roof frame (4) in the beaded areas (areas Q).
- Model 290
except code 397 (Carbon roof)
except code 414 (Sliding sunroof)
except code 416 (Panoramic sunroof)
Install roof frame console (5), fit, and fix in place.
- Model 290
except code 397 (Carbon roof)
except code 414 (Sliding sunroof)
except code 416 (Panoramic sunroof)

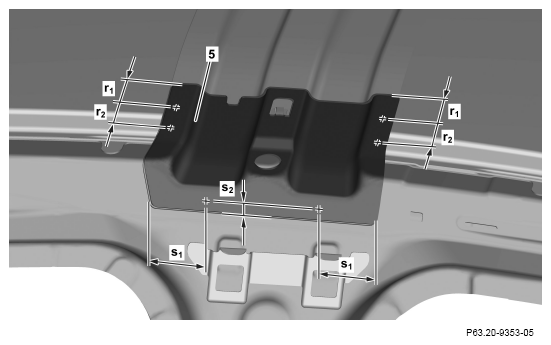

Mark positions of the rivet holes on the roof frame console (5).
Dimensions:
r1 = 35 mm
r1 = 18 mm
s1 = 45 mm
s2 = 6 mm
- Model 290
except code 397 (Carbon roof)
except code 414 (Sliding sunroof)
except code 416 (Panoramic sunroof)

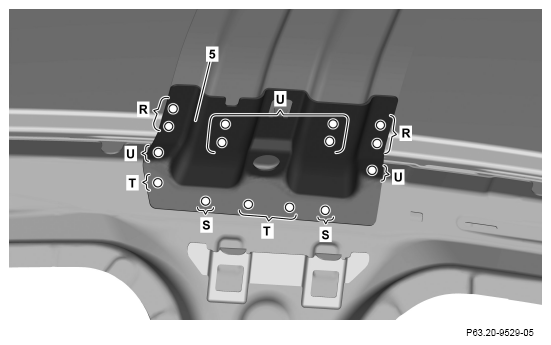

Drill rivet holes in roof frame mounting support (5) with ø 6.7 mm (areas R, S, T).
Drill rivet holes at positions marked previously (areas R, S).
- Model 290
except code 397 (Carbon roof)
except code 414 (Sliding sunroof)
except code 416 (Panoramic sunroof)
Drill rivet holes in roof frame mounting support (5) from outside with ø 6.7 mm and countersink (areas U).
- Model 290
except code 397 (Carbon roof)
except code 414 (Sliding sunroof)
except code 416 (Panoramic sunroof)
Remove roof frame console (5).
- Model 290
except code 397 (Carbon roof)
except code 414 (Sliding sunroof)
except code 416 (Panoramic sunroof)
Deburr rivet holes on roof frame console (5) and body on both sides.
- Model 290
except code 397 (Carbon roof)
except code 414 (Sliding sunroof)
except code 416 (Panoramic sunroof)
Remove drilling chips.
- Model 290
except code 397 (Carbon roof)
except code 414 (Sliding sunroof)
except code 416 (Panoramic sunroof)
Coat insides of riveted joints with zinc dust paint.
- Model 290
except code 397 (Carbon roof)
except code 414 (Sliding sunroof)
except code 416 (Panoramic sunroof)

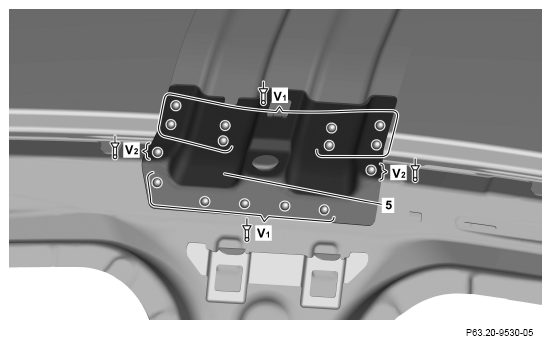

Rivet roof frame mounting support (5) with rivets ø 6.5x12.5 (areas V1 ).
- Model 290
except code 397 (Carbon roof)
except code 414 (Sliding sunroof)
except code 416 (Panoramic sunroof)
Rivet roof frame mounting support (5) from outside with counter sunk head rivets ø 6.4x17.0 (areas V2 ).
- Install B-pillar paneling (1) and longitudinal member paneling (3), fit and fix in place.

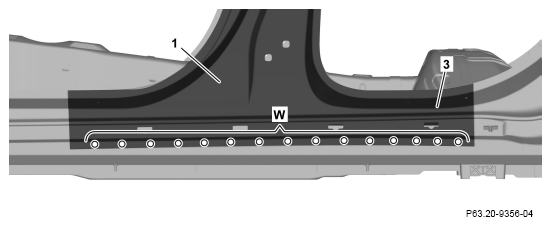

- Drill rivet holes on B-pillar paneling (1) and longitudinal member paneling (3) with 6.7 mm bit (area W).
- Remove B-pillar paneling (1) and longitudinal member paneling (3).
- Deburr rivet holes on B-pillar paneling (1), longitudinal member paneling (3) and body on both sides.
- Remove drilling chips.
- Coat insides of riveted joints with zinc dust paint.

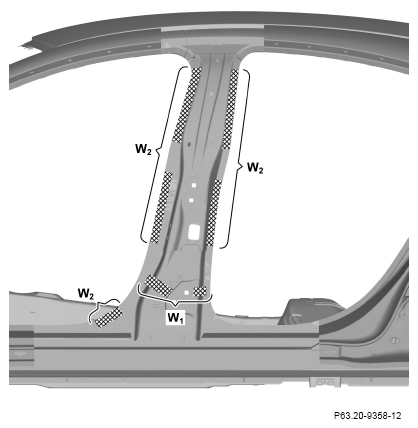

- Apply sealant to the foam parts in the cross-hatched areas (area W1 ).
- Apply 2-component adhesive to the body in the cross-hatched areas (areas W2
).
Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.
- Install B-pillar paneling (1) and longitudinal member paneling (3) and fix in place.

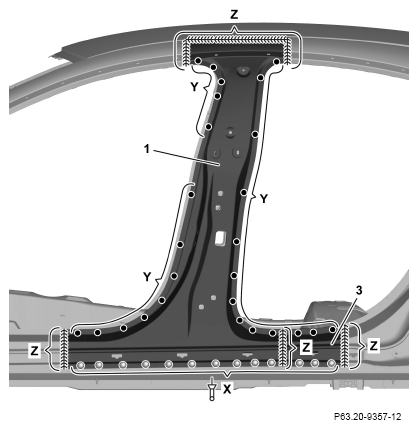

- Rivet B-pillar trim (1) and longitudinal member paneling (3) with rivets ø 6.4x12 (area X).
- B-pillar paneling (1) and longitudinal member paneling (3)
(areas Y).
- B-pillar paneling (1) and longitudinal member paneling (3)
(areas Z).
Inert gas weld in intervals and allow welding area to cool down in between. Reduces heat distortion.
- Sand inert gas welds down flat (areas Z).
- Solder surfaces on B-pillar paneling (1) and longitudinal member paneling (3) with body solder and smooth (areas Z).
A basic body filler can also be used as an alternative to the restoration of the surfaces with body solder.
