CENTER ROOF PANELING COMPLETE ReplaceMENT - AR65.10-P-1000FRC

Model 290 with code 397 (Carbon roof)

Courtesy of MERCEDES-BENZ USA

	Risk of poisoning caused by inhaling vapors or swallowing adhesive. Risk of injury caused by adhesive coming into contact with skin and eyes	Wear respiratory protection, protective gloves and safety glasses. Pour adhesive into suitable and appropriately marked containers only.	AS00.00-Z-0016-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	General information on body repair		AH60.00-P-0001-01KOA
Notice	Pretreatment of bonding surfaces		AH60.00-P-0008-01SX
	Remove
1	Completely open side windows on the driver's door and front passenger door.	The side window on the driver's door and front passenger door must be completely open. Otherwise the carbon roof (1) is pressed toward the outside by the air pressure that occurs in the vehicle interior when closing a door during the curing time of the adhesive.
2	Remove headliner.		AR68.30-P-4300FRX
3	Mask off all paint surfaces adjacent to the carbon roof (1) with protective foil.	Protect paint surfaces against damage and contamination. Otherwise scratches or score marks as well as contamination when applying the adhesive material will occur when cutting the adhesive seams or when removing or inserting the carbon roof (1).
		Commercially available devices/tools Protective foil

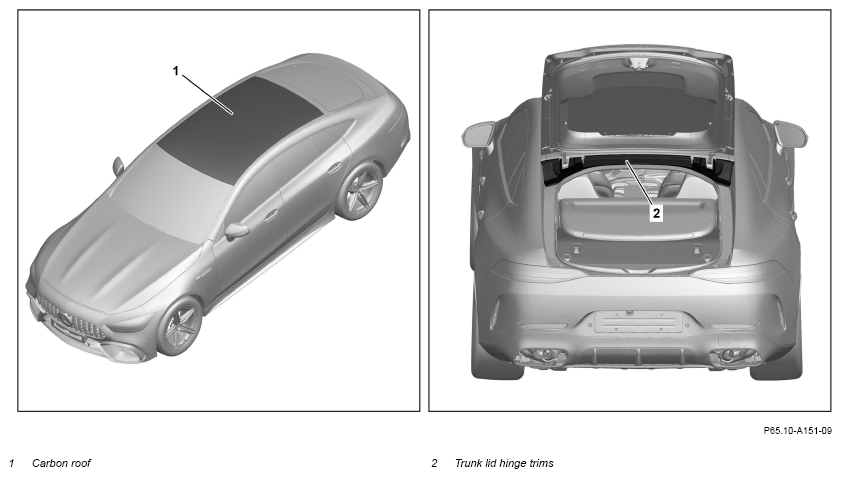

4	Open the trunk lid and unclip and remove the trim of the trunk lid hinges (2).	Mounting wedge	Fig 1
5	Cut out carbon roof (1).	Helper required. Commercially available devices/tools Cup suction tool Cutting wire	AR65.10-P-1000-02FRC
		Set of shields	Fig 3
	Preparation
6	Prepare mating surfaces on the vehicle for the carbon roof (1).	Before starting work, all component parts, materials, and tools must be prepared for installing the carbon roof (1). Otherwise it may not be possible to maintain permissible processing and joining times.	AR65.10-P-1000-08FRC
		Repair kit for installing windshields, 1-component adhesive	*BR00.45-Z-1135-02A
7	Prepare carbon roof (1).	Helper required. Always install new carbon roof (1). Commercially available devices/tools Cup suction tool	AR65.10-P-1000-03FRC
		Repair kit for installing windshields, 1-component adhesive	*BR00.45-Z-1135-02A
	Install
8	Install carbon roof (1).	Helper required. Commercially available devices/tools Cup suction tool Squeeze gun	AR65.10-P-1000-07FRC
		Roof to liftgate	*BE60.00-P-1021-01KA
		Repair kit for installing windshields, 1-component adhesive	*BR00.45-Z-1135-02A
		Feeler gauge	Fig 2
9	Remove protective foils from roof.	After curing time of adhesive material.
10	Install trunk lid hinge trims (2).	After curing time of adhesive material.
11	Install headliner.	After curing time of adhesive material.	AR68.30-P-4300FRX
	Check
12	Perform function test of the systems that are influenced by the previous work procedure.
