Check Body Gap Dimensions - Ar60.00-P-0900-01FRX

Model 290

GAP DIMENSIONS

Number	Designation			Model 290
BE60.00-P-1001-01KA	Engine hood to fender	Dimension "A"	mm	3 (±0, 5)
BE60.00-P-1001-01KA	Engine hood to fender	For picture, see		AR60.00-P-0900-01FRX

GAP DIMENSIONS

Number	Designation			Model 290
BE60.00-P-1002-01KA	Engine hood to bumper	Dimension "B"	mm	3, 5 (±0, 5)
BE60.00-P-1002-01KA	Engine hood to bumper	For picture, see		AR60.00-P-0900-01FRX

GAP DIMENSIONS

Number	Designation			Model 290
BE60.00-P-1003-01KA	Protrusion of radiator trim/soft nose, engine hood	Dimension "B1"	mm	1 (±0, 5)
BE60.00-P-1003-01KA	Protrusion of radiator trim/soft nose, engine hood	For picture, see		AR60.00-P-0900-01FRX

GAP DIMENSIONS

Number	Designation			Model 290
BE60.00-P-1004-01KA	Bumper to fender	Dimension "C"	mm	0 (±0, 5)
BE60.00-P-1004-01KA	Bumper to fender	For picture, see		AR60.00-P-0900-01FRX

GAP DIMENSIONS

Number	Designation			Model 290
BE60.00-P-1005-01KA	Fender to headlamp	Dimension "D"	mm	2 (±1, 5)
BE60.00-P-1005-01KA	Fender to headlamp	For picture, see		AR60.00-P-0900-01FRX

GAP DIMENSIONS

Number	Designation			Model 290
BE60.00-P-1006-01KA	Bumper to headlamp at bottom	Dimension "E1"	mm	2, 0 (±1, 0)
BE60.00-P-1006-01KA	Bumper to headlamp at bottom	For picture, see		AR60.00-P-0900-01FRX

GAP DIMENSIONS

Number	Designation			Model 290
BE60.00-P-1007-01KA	Bumper to headlamp, side	Dimension "E2"	mm	3 (±1, 5)
BE60.00-P-1007-01KA	Bumper to headlamp, side	For picture, see		AR60.00-P-0900-01FRX

GAP DIMENSIONS

Number	Designation			Model 290
BE60.00-P-1008-01KA	Bumper to headlamp at top	Dimension "E3"	mm	4, 5 (±2, 0)
BE60.00-P-1008-01KA	Bumper to headlamp at top	For picture, see		AR60.00-P-0900-01FRX

GAP DIMENSIONS

Number	Designation			Model 290
BE60.00-P-1009-01KA	Front door to fender	Dimension "F"	mm	4 (±0, 5)
BE60.00-P-1009-01KA	Front door to fender	For picture, see		AR60.00-P-0900-01FRX

GAP DIMENSIONS

Number	Designation			Model 290
BE60.00-P-1010-01KA	Front door to rear door	Dimension "G"	mm	4 (±0, 5)
BE60.00-P-1010-01KA	Front door to rear door	For picture, see		AR60.00-P-0900-01FRX

GAP DIMENSIONS

Number	Designation			Model 290
BE60.00-P-1011-01KA	Rear door to side section, bottom	Dimension "H"	mm	3, 5 (±0, 5)
BE60.00-P-1011-01KA	Rear door to side section, bottom	For picture, see		AR60.00-P-0900-01FRX

GAP DIMENSIONS

Number	Designation			Model 290
BE60.00-P-1012-01KA	Taillamp to bumper	Dimension "I"	mm	2 (±1)
BE60.00-P-1012-01KA	Taillamp to bumper	For picture, see		AR60.00-P-0900-01FRX

GAP DIMENSIONS

Number	Designation			Model 290
BE60.00-P-1013-01KA	Liftgate to bumper	Dimension "J"	mm	5 (±1, 5)
BE60.00-P-1013-01KA	Liftgate to bumper	For picture, see		AR60.00-P-0900-01FRX

GAP DIMENSIONS

Number	Designation			Model 290
BE60.00-P-1014-01KA	Rear fender to taillamp	Dimension "K"	mm	1 (±0, 5)
BE60.00-P-1014-01KA	Rear fender to taillamp	For picture, see		AR60.00-P-0900-01FRX

GAP DIMENSIONS

Number	Designation			Model 290
BE60.00-P-1015-01KA	Liftgate to outer tail lamp	Dimension "L1"	mm	4, 5 (±1, 0)
		Dimension "L2"	mm	5 (±1, 5)
		For picture, see		AR60.00-P-0900-01FRX

GAP DIMENSIONS

Number	Designation			Model 290
BE60.00-P-1016-01KA	B-pillar cover to front window	Dimension "M"	mm	10 (-0, 5/+1)
BE60.00-P-1016-01KA	B-pillar cover to front window	For picture, see		AR60.00-P-0900-01FRX

GAP DIMENSIONS

Number	Designation			Model 290
BE60.00-P-1017-01KA	B-pillar cover to rear window	Dimension "N"	mm	10 (-0, 5/+1)
BE60.00-P-1017-01KA	B-pillar cover to rear window	For picture, see		AR60.00-P-0900-01FRX

GAP DIMENSIONS

Number	Designation			Model 290
BE60.00-P-1018-01KA	Liftgate to fender	Dimension "O"	mm	3, 5 (±1, 0)
BE60.00-P-1018-01KA	Liftgate to fender	For picture, see		AR60.00-P-0900-01FRX

GAP DIMENSIONS

Number	Designation			Model 290
BE60.00-P-1019-01KA	Fuel filler flap	Dimension "P"	mm	2, 0 (±0, 5)
BE60.00-P-1019-01KA	Fuel filler flap	For picture, see		AR60.00-P-0900-01FRX

GAP DIMENSIONS

Number	Designation			Model 290
BE60.00-P-1020-01KA	Side wall to bumper at rear	Dimension "Q"	mm	0, 5 (±0, 5)
BE60.00-P-1020-01KA	Side wall to bumper at rear	For picture, see		AR60.00-P-0900-01FRX

GAP DIMENSIONS

Number	Designation			Model 290
BE60.00-P-1021-01KA	Roof to liftgate	Dimension "R1"	mm	5, 0 (±1, 0)
BE60.00-P-1021-01KA	Roof to liftgate	For picture, see		AR60.00-P-0900-01FRX

GAP DIMENSIONS

Number	Designation			Model 290
BE60.00-P-1022-01KA	Panoramic roof to liftgate	Dimension "R2"	mm	5, 5 (-1, 5/+1, 0)
BE60.00-P-1022-01KA	Panoramic roof to liftgate	For picture, see		AR60.00-P-0900-01FRX

GAP DIMENSIONS

Number	Designation			Model 290
BE60.00-P-1024-01KA	Liftgate to spoiler	Dimension "T"	mm	2, 5 (±1, 0)
BE60.00-P-1024-01KA	Liftgate to spoiler	For picture, see		AR60.00-P-0900-01FRX

GAP DIMENSIONS

Number	Designation			Model 290
BE60.00-P-1025-01KA	Liftgate to fixed spoiler	Dimension "U"	mm	2 (±1, 0)
BE60.00-P-1025-01KA	Liftgate to fixed spoiler	For picture, see		AR60.00-P-0900-01FRX

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

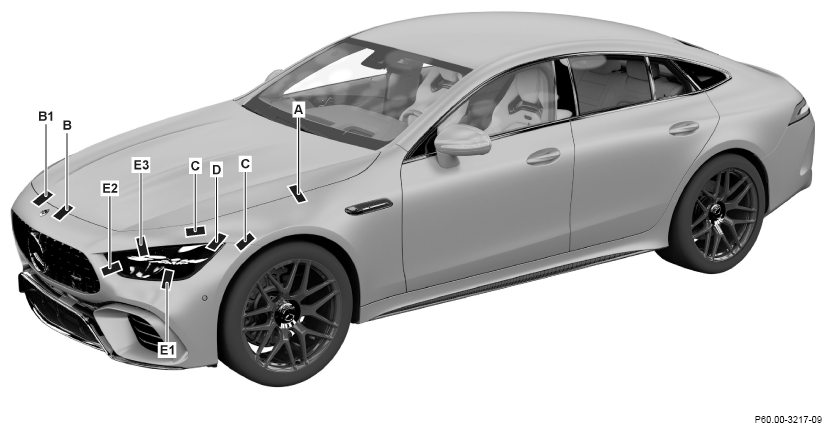

Front gap dimensions

Courtesy of MERCEDES-BENZ USA

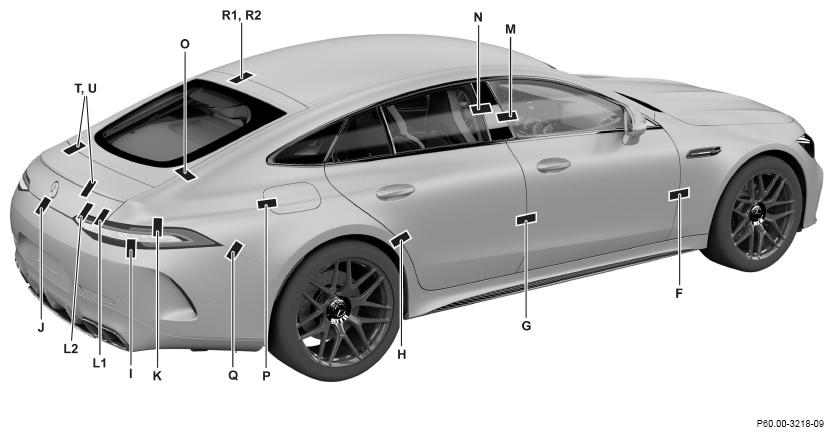

Rear and side gap dimensions

Check gap dimensions with feeler gauge as per sketches.
Gap dimensions must be adjusted as per the drawings. The gap should not run wedge-shaped or be too narrow at points. Deviations from parallel gap should be max. 1 mm over the entire length. If the inside clearance is too large or too small, the movable body parts must be centered accordingly. The reference measurements apply only for repair work on vehicles damaged in accidents.
