Retrofit CD Drive - AZ82.64-P-0002RXJ

Model 290

with code 498 (Japanese version)

with code 531 (COMAND APS)

with code 897 (Front wireless telephone charging)

except code 320 (Single CD drive preinstallation)

except code 460 (Canada version)

except code 494 (US version)

Model 290

with code 498 (Japanese version)

with code 531 (COMAND APS)

with code 899 (Multifunction telephony)

except code 320 (Single CD drive preinstallation)

except code 460 (Canada version)

except code 494 (US version)

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on retrofitting electrical/optical lines		AH82.00-P-0000-01A
	Remove
1	Remove fragrance system alternator.
		Model 290 with code P21 (Air Quality Package)	AR83.40-P-0201FR
2	Remove glove box.
			AR68.10-P-1402FR
3	Remove display module.
			AR54.30-P-6023FR
4	Remove trim at bottom for instrument panel on driver's side.
			AR68.10-P-1501FR
5	Remove stowage compartment in front center console.
			AR68.20-P-0901FRX
6	Release fuse and relay module on driver's side.
			AR54.15-P-0003FR
	Install

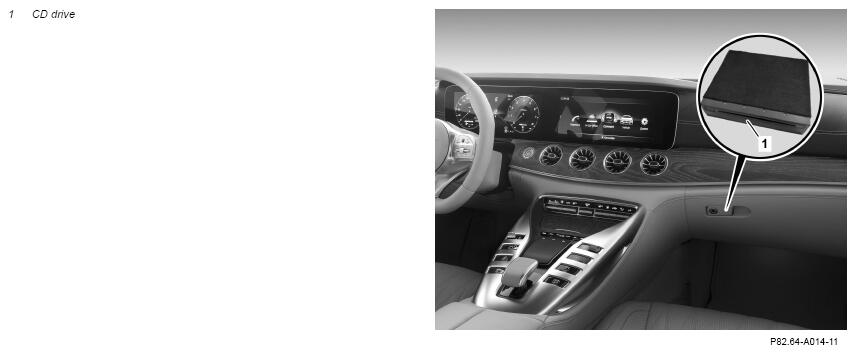

7	Produce drilling template for holder of CD drive (1).	Model 290.### 1#	AZ82.64-P-0002-04LWE
		Model 290.### 2#	AZ82.64-P-0002-04LWR
8	Produce adhesive film cutting template for CD drive (1).		AZ82.64-P-0002-05LWE
9	Cut adhesive film to size using cutting template.
10	Prepare glove compartment housing for installation of CD drive (1).	Model 290.### 1#	AZ82.64-P-0002-08LWE
		Model 290.### 2#	AZ82.64-P-0002-08LWR
11	Prepare holder for CD drive (1) for installation.		AZ82.64-P-0002-06LWE
12	Make cutout on stowage compartment in front center console.		AZ82.64-P-0002-14RX
13	Install stowage compartment in front center console in center console cover.
			AR68.20-P-0901FRX
14	Place center console cover in installation area.
15	Retrofit wiring harness for CD drive (1).		AZ82.64-P-0002-01RXJ
Notice	Notes on the use of paint scraping nuts on ground connections		AH00.19-P-1000-20A
	Assignment of driver-side fuse and relay module		GF54.15-P-1256-49FR
		The wiring diagram documentation for this model series is available in the DWD (Dynamic Wiring Diagram). https: //ws-retailfactory-dyna.mercedes-benz.com/start-aspu/
		Left footwell ground point	*BA00.19-P-1021-02D
16	Install center console cover.
			AR68.20-P-2350FRX
17	Retrofit CD drive (1) in glove compartment housing.		AZ82.64-P-0002-03LWE
18	Install glove compartment housing with CD drive (1).
			AR68.10-P-1402FR
19	Insert a fuse with a fuse rating of 5 A into slot 207 of driver's side fuse and relay module.
	Assignment of driver-side fuse and relay module		GF54.15-P-1256-49FR
20	Install remaining parts.
	Update Vehicle Documentation (VeDoc)
21	Attach note "CD drive retrofitted as per AZ82.64-P-0002RXJ" under field organization texts for DG 82 and DG 54.
	Check
22	Perform function test.	See Owner's Manual.

Number	Designation			Model 290
BA00.19-P-1021-02D	Left footwell ground point	W34	Nm	10

Part no.	Designation	Quantity
KG 98 (see EPC)	CD drive parts kit	1
