Remove/Install Rear Door - AR72.12-P-0600FR

Model 257, 290

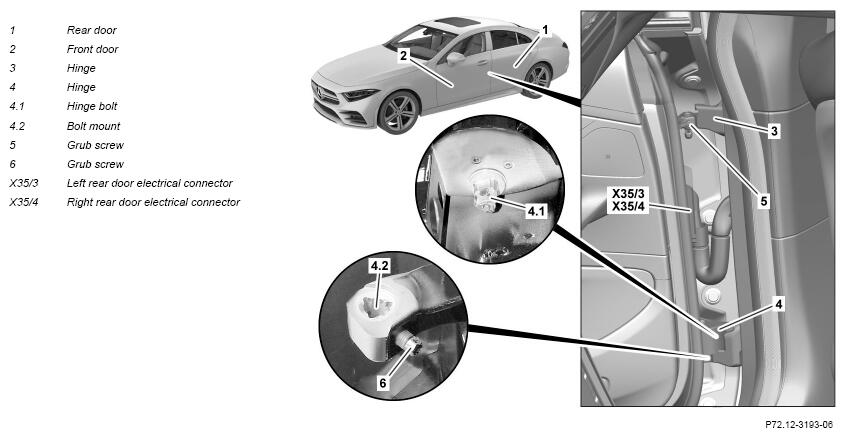

Shown on model 257

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Open front door (2).
2	Fully open side window of rear door (1).
3	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
4	Disconnect rear door electrical connector (X35/3, X35/4).
5	Remove cover of grub screw (5).
6	Unscrew grub screws (5, 6) of hinges (3, 4) by 3 turns.	Repair paint damage in area of grub screws (5, 6).
		Grub screw for hinge separation	*BA72.12-P-1003-01R
7	Remove rear door (1) from lower hinge leaves and set down on a suitable base.	Carefully handle rear door (1). Otherwise paint damage can occur.
		Helper required.
		The exterior contour of the hinge bolt (4.1) should be flush with the inside contour of the bolt mount (4.2).
8	Install in the reverse order.
	Check
9	Check gap dimensions of rear door (1), adjust if necessary.		AR72.12-P-0650FR
10	Normalize window lifter.
11	Check side window adjustment, adjust if necessary.		AR67.30-P-0016FR

REAR DOOR

Number	Designation		Model 257	Model 290
BA72.12-P-1003-01R	Grub screw for hinge separation	Nm	20	20
