Remove/Install Exhaust Camshaft Positioner - AR05.20-P-7207MSC

Engine 256.9 In Model 167

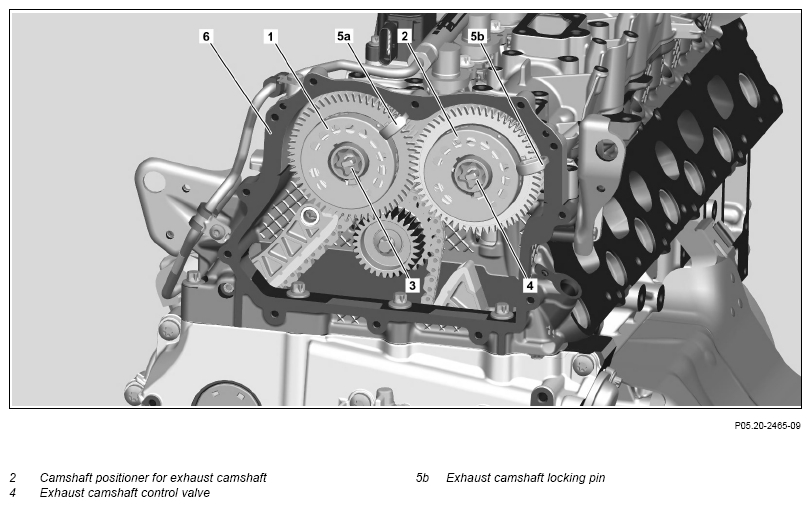

Fig 1: Exhaust Camshaft Positioner Components Location - Engine 256.9 In Model 167

Courtesy of MERCEDES-BENZ USA

	Risk of injury To skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
Topical note	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove
1	Remove rear cover at cylinder head.		AR01.30-P-5702MSC
2	Move camshafts to basic position.		AR05.20-P-6010MSC
3	Mark exhaust camshaft camshaft positioner (2) with exhaust camshaft locking pin (5b).	Assembly tool	Fig 3
4	Remove exhaust camshaft control valve (4).	The exhaust camshaft control valve (4) has left-hand thread.
		Socket wrench bit	Fig 4
5	Remove exhaust camshaft camshaft positioner (2).
	Install
6	Install exhaust camshaft camshaft positioner (2).
7	Wet thread and bolt head contact surface of the exhaust camshaft control valve (4) with engine oil.
	Specified engine oils (service) - Overview		BB00.40-P-0223-02A
8	Tighten exhaust camshaft control valve (4).	Tighten exhaust camshaft control valve (4) uniformly without interruption with specified torque. The exhaust camshaft control valve (4) has left-hand thread.
		Central valve on camshaft positioner	*BA05.10-P-1001-01MRT
		Socket wrench bit	Fig 4
9	Remove the camshaft's fixing device.	Locating tool	Fig 2
10	Remove exhaust camshaft locking pin (5b).	Assembly tool	Fig 3
11	Turn engine in direction of engine rotation by two revolutions and set piston of cylinder 1 to ignition TDC.	Turn engine only in the direction of engine rotation. Engine damage will occur otherwise. The TDC marking on the vibration damper must match with marking on crankcase.
		Counterholder	Fig 5
12	Check basic position of camshafts.		AR05.20-P-6010MSC
13	Install rear cap on cylinder head.		AR01.30-P-5702MSC
