Check Basic Position Of Camshafts - AR05.20-P-6010MSC

Engine 256.9 In Model 167

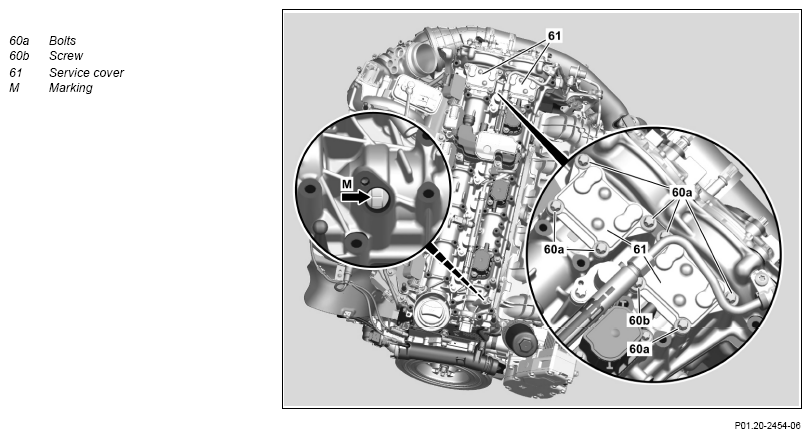

G14785963Courtesy of MERCEDES-BENZ USA
CAUTION Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil Wear protective gloves, protective clothing and safety glasses.
Do not fill engine oil into beverage containers.		 AS18.00-Z-0001-01A
Topical note  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
REMOVINGINSTALLING Remove/install
1 Remove upper service flap.   AR01.10-P-2405-02MSC
    TORQUE SPECIFICATION Nut to wiper arm on front windshield wiper system *BA82.30-P-1001-01R
    TORQUE SPECIFICATION M6 X 1 *BA00.10-P-1002-04A
2 Remove Hall sensor of the exhaust camshaft.   AR15.12-P-2147MSC
3 Remove Hall sensor of the intake camshaft.   AR15.12-P-2146MSC
4 Turn engine in direction of engine rotation to cylinder 1 ignition TDC and install retaining lock for crankshaft. IMPORTANT If marking (M) is not visible, piston of cylinder 1 is not at ignition TDC. AR03.30-P-5001MSC
5 Remove engine air intake duct downstream of air filter.   AR09.10-P-8130MSC
6 Remove front noise insulation.
7 Remove wide open throttle bleed line from oil separator.   AR01.20-P-9750MSC
8 Remove rear noise insulation.
9 Remove screws (60a). NOTES When loosening and tightening the screws (60a), do not damage the fuel high-pressure line.
Leaks can occur otherwise.
TORQUE SPECIFICATION Screw, service cover to camshaft housing		 *BA05.20-P-1003-04MRT
10 Loosen screw (60b). NOTES When loosening and tightening the screw (60b), do not damage the fuel high-pressure line.
Leaks can occur otherwise.
TORQUE SPECIFICATION Screw, service cover to camshaft housing		 *BA05.20-P-1003-04MRT
    SPECIAL TOOL Box wrench bit Fig 3
    SPECIAL TOOL Engine mount wrench set Fig 2
11 Remove service covers (61). INSTALLATION NOTES :
Ensure seal is correctly installed.
The seals will otherwise be damaged.
INSTALLATION IMPORTANT : Replace seals.
INSPECT Check
12 Install locating tool in service openings to check basic position of camshafts. IMPORTANT The SPECIAL TOOL locating tool must be inserted in the service openings in a disassembled manner.
SPECIAL TOOL Locating tool		 Fig 1
    If locating tool can not be inserted:
↓
Set basic position of the camshafts.		 AR05.20-P-6020MSC
13 Install in the reverse order.
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143

Number Designation 8.8 10.9
BA00.10-P-1002-04A M6 X 1 Nm 9 13
CAMSHAFT CASE

Number Designation Engine 256
BA05.20-P-1003-04MRT Screw, service cover to camshaft housing Nm 8
WINDSHIELD WIPER

Number Designation Model 167
BA82.30-P-1001-01R Nut to wiper arm on front windshield wiper system Nm 30
Fig 1: Identifying Locating Tool (256 589 00 23 00)
G14785964Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Engine Mount Wrench Set (001 589 01 16 00)
G14785965Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Box Wrench Bit (285 589 01 03 00)
G14785966Courtesy of MERCEDES-BENZ USA
