Remove/Install Rear Cover On Cylinder Head - AR01.30-P-5702MSC

Engine 256.9 In Model 167

MODIFICATION NOTES

05.09.2019 Operation step version added Operation steps 6.1, 6.2

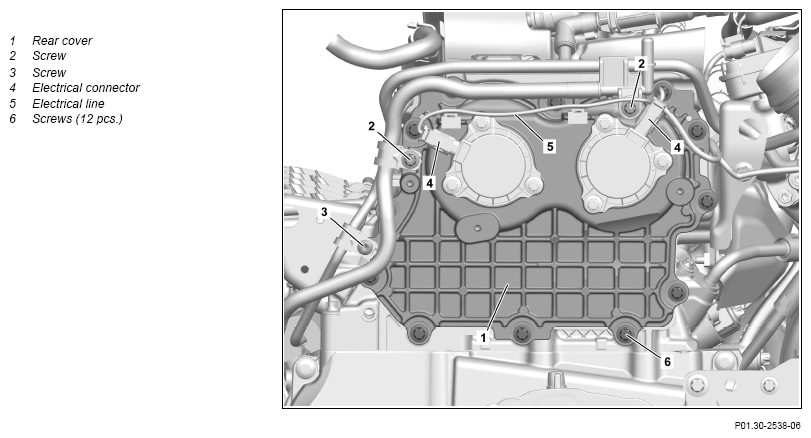

G14785769Courtesy of MERCEDES-BENZ USA
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
CAUTION Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil Wear protective gloves, protective clothing and safety glasses.
Do not fill engine oil into beverage containers.
AS18.00-Z-0001-01A
Notice  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
REMOVINGINSTALLING Remove/install
1 Remove air filter housing.   AR09.10-P-1150MSC
2 Remove engine air intake duct downstream of air filter. INSTALLATION IMPORTANT : Do not install upper engine cover until after the leak test. AR09.10-P-8130MSC
3 Remove front noise insulation.
4 Remove wide open throttle bleed line from oil separator.   AR01.20-P-9750MSC
5 Remove rear noise insulation.
6.1 Remove charge air line. Engine 256.9 In Model 167
except code M016 (Uprated engine)
AR09.41-P-8950MSC
6.2 Remove the check valve. Engine 256.9 In Model 167 with code M016 (Uprated engine) AR09.41-P-8970MSC
7 Remove screws (2) and place vacuum line to one side. TORQUE SPECIFICATION Screw, vacuum line bracket to chain case cover on cylinder head *BA01.30-P-1003-01MR  T
8 Remove screw (3) and place bracket to one side. TORQUE SPECIFICATION Bolt, holder for high-pressure line to camshaft housing/cylinder head *BA07.03-P-1004-01MR  T
9 Release and disconnect the electrical connections (4).
10 Unclip electric line (5) from rear cover (1) and place to one side.
11 Remove the screws (6) in reverse order from the tightening procedure. Bolt plan AR01.30-P-5702-05MRT
    TORQUE SPECIFICATION Screw, chain case cover to cylinder head/camshaft housing *BA01.30-P-1001-01MR  T
12 Remove rear cap (1). NOTES Do not pound in a tool between the rear cap (1) and cylinder head to remove.
Sealing surfaces will otherwise be damaged.
INSTALLATION IMPORTANT : Replace seal.

13 Remove adjustment solenoid of exhaust camshaft (Y49/2). When installing new rear cap (1). AR05.20-P-7306MSC
14 Remove adjustment solenoid of intake camshaft (Y49/1). When installing new rear cap (1). AR05.20-P-7305MSC
CLEAN Clean
15 Clean sealing surfaces of the rear cap (1) and cylinder head. NOTES Do not use any sharp-edged tools or abrasive paper.
Sealing surfaces will otherwise be damaged.
Loctite 7063 (400 ml) cleaning spray
*BR00.45-Z-1046-04A
    Loctite 7200 *BR00.45-Z-1038-04A
INSPECT Check
16 Check sealing surfaces of the rear cap (1) cylinder head for damage. and If damage is present,
↓
Replace corresponding component.
AR01.30-P-5800MSC
17 Install in the reverse order.
  Concluding tasks
18
REFER TO MAINTENANCE
Check engine oil level and correct.   AP18.00-P-1812SKI
WARNING Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust. Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. AS49.00-Z-0001-01A
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
19 Perform engine test run. While doing so, check engine for proper operation and leak tightness.
20 Install upper engine cover.   AR01.10-P-2405MSC
CYLINDER HEAD

Number Designation Engine 256.9
BA01.30-P-1001-01MRT Screw, chain case cover to cylinder head/camshaft housing Nm 8
CYLINDER HEAD

Number Designation Engine 256.9
BA01.30-P-1003-01MRT Screw, vacuum line bracket to chain case cover on cylinder head Nm 8
HIGH-PRESSURE LINE, LOW-PRESSURE LINE, FUEL DISTRIBUTOR

Number Designation Engine 256.9
BA07.03-P-1004-01MRT Bolt, holder for high-pressure line to camshaft housing/cylinder head Nm 8
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1038-04A Loctite 7200 A 010 989 90 71
BR00.45-Z-1046-04A Loctite 7063 (400 ml) cleaning spray A 001 986 71 71 09
